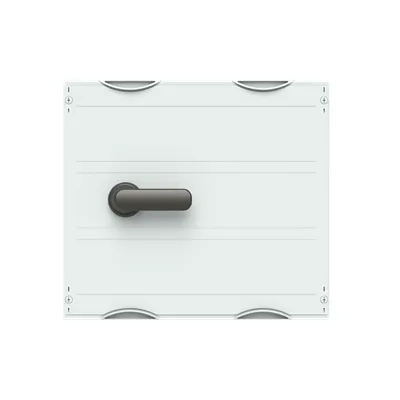

ABB 2CPX041374R9999 Switch OT - 400 V 630 A DIN EN 61439-3
Part Number: 2CPX041374R9999
Quick Summary
ABB 2CPX041374R9999 Switch OT interior fitting module enables reliable 3-pole switch disconnection inside cabinet power distributions. It addresses common panel-space constraints and wiring complexity by integrating a robust OT630E device into a compact 72-DIN unit. This solution aligns with DIN EN 61439-3 and CE guidelines, while RoHS and REACH declarations support regulatory compliance. Designed for panel builders and system integrators, it leverages a WR mounting frame and a 500×450 mm footprint to deliver predictable performance in industrial automation and busbar system configurations.
Product Information
Extended Description
2CPX041374R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Switch disconnector OT, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, equipped with 1 NH-switch disconnector OT630E, Equipment manufacturer: ABB, OT, for busbar system 3-pole, rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
630 A
Rated Operational Current (Ie)
630 A
Number of Poles
3P
Number of Switches
1
Number of Mountable Devices
1
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR
Device
OT630E
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
72
Meter Boards
0
Module Function
Switch disconnector OT
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
260 mm
Section Width
2
Product Net Weight
9.17 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.172 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 3-pole OT630E switch disconnector integrated in an interior fitting module → Business Impact: Enables compact, serviceable, and code-compliant panel designs with reduced assembly time and fewer field connections → Application: Ideal for CombiLine panel systems and cabinet-integrated distribution. Feature: 72 DIN place units and 2U width in a 500×450 mm footprint → Business Impact: Maximizes cabinet density while preserving accessibility for maintenance and upgrades → Application: Suitable for high-density industrial control panels and modular electrical rooms. Feature: Built-in with enclosure frame WR and 90-degree press/turn closure → Business Impact: Simplifies installation, improves enclosure integrity, and speeds commissioning → Application: Supports standardized deployment in panel builders’ workflows. Feature: RoHS and REACH declarations with DIN EN 61439-2/3 compliance → Business Impact: Reduces regulatory risk and market entry barriers across EU regions → Application: Compliance-forward solution for global manufacturing environments. Feature: 400 V operating voltage, 630 A rated current, and 3P/1 switch → Business Impact: Delivers reliable protection for high-demand circuits with scalable fault isolation → Application: Suitable for industrial feeders, busbar installations, and large machinery drives.
Get a Quick Quote for a ABB 2CPX041374R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041374R9999?
Enquire Now
FAQs
Installation begins with confirming the WR enclosure mounting frame compatibility and ensuring a 500x450 mm footprint fits the cabinet. The OT630E switch disconnector is integrated into a 72 DIN unit interior module, enabling straightforward bolt-in mounting. Use the 90-degree closure and built-in depth of 275 mm to align with the busbar system and ensure proper wiring routing for serviceability and future upgrades.
The module supports a rated operational voltage of up to 400 V and a rated current of 630 A, with three poles (3P) and a single switch. It includes 72 DIN place units, a 500 mm width, 450 mm height, and a 260 mm depth, optimized for high-current distribution in cabinet-mounted applications.
Yes. The module is designed to DIN EN 61439-2/3 compliant for distribution panels and cabinets. RoHS information and REACH declarations are provided, including EU RoHS status and related dates, ensuring regulatory alignment for European markets and safe material composition in line with modern industrial standards.
Net dimensions are 500 mm wide, 450 mm high, and 260 mm deep, with a built-in depth of 275 mm. The enclosure supports a 72 DIN unit arrangement and uses a WR mounting frame, enabling efficient utilization of cabinet space while keeping access for maintenance and testing.
The product carries CE declarations and compliance statements, RoHS information dated 2024-09-03, and REACH information dated 2024-09-02. It also references the WEEE category for Small Equipment, indicating proper end-of-life handling. These declarations support responsible procurement, regulatory audits, and sustainability initiatives in manufacturing environments.
