ABB 2CPX041375R9999 Switch Disconnector OT - 800 A, DIN EN 61439-3
Part Number: 2CPX041375R9999
Quick Summary
ABB 2CPX041375R9999 switch disconnector OT is used to provide three-pole isolation in large cabinet grids for industrial power distribution. In complex panel builds, unreliable mounting and undocumented connections cause downtime and safety risk; this interior fitting module offers a ready-to-install design with clearly defined terminations. It carries CE conformity, RoHS compliance, REACH declarations, and WEEE compliance for regulatory assurance. With 96 DIN places in a 600 mm by 500 mm footprint and WR mounting frame, it fits standard CombiLine cabinets and streamlines cabling. The solution supports fast commissioning and predictable maintenance, delivering long-term reliability in protection schemes while simplifying traceability.
Product Information
Extended Description

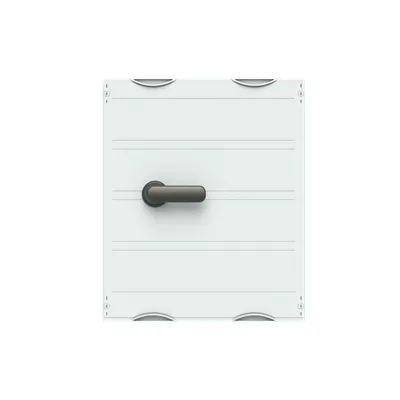

2CPX041375R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Switch disconnector OT, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, equipped with 1 NH-switch disconnector OT800E, Equipment manufacturer: ABB, OT, for busbar system 3-pole, rated current maximum 800 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 325 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
800 A
Rated Operational Current (Ie)
800 A
Number of Poles
3P
Number of Switches
1
Number of Mountable Devices
1
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR
Device
OT800E
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
DIN Place Units
96
Meter Boards
0
Module Function
Switch disconnector OT
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
325 mm
Section Width
2
Product Net Weight
9.228 kg
Built-In Depth (t2)
325 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
9.228 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: The interior fitting module is designed to house a 3P OT800E switch with a WR mounting frame for robust enclosure integration. Business Impact: This arrangement provides superior mechanical stability, reduces panel movement and vibration, and lowers service fault rates during door operations. Application: Ideal for CombiLine cabinets requiring reliable isolation in 600 mm by 500 mm footprints and factory-assembled protection. Feature: 96 DIN place capacity supports dense protection schemes without compromising access to terminations. Business Impact: Enables designers to consolidate protection functions, shorten wiring runs, and speed commissioning. Application: Suitable for large process lines or switchgear where space is at a premium but performance must remain high. Feature: The module ships with a single OT device, supports 800 A ratings, and operates at up to 400 V. Business Impact: This combination delivers high-current isolation with minimal field wiring changes and fewer failure points. Application: Primary feeders in distribution panels and grid units benefit from reduced installation time and improved reliability. Feature: Compliance and documentation are embedded, including CE conformity, RoHS information, REACH declaration, and WEEE categorization. Business Impact: Simplifies regulatory audits, improves supplier traceability, and lowers risk of compliance gaps. Application: Use in European manufacturing and system-integrator projects that demand formal declarations. Feature: A light grey plastic enclosure, 90-degree closure, and a cut-out design enable straightforward access and serviceability. Business Impact: Enhances safety during maintenance, reduces downtime, and supports quick fault isolation. Application: Ideal for interior fittings within panels where frequent access is necessary and stable climate control is required.
