ABB 2CPX041377R9999 Switch Disconnector OT Interior Fitting Module - DIN EN 61439-3
Part Number: 2CPX041377R9999
Quick Summary
ABB 2CPX041377R9999 Switch Disconnector OT interior fitting module delivers compact, ready-to-install protection for 4-pole switchgear in panel cabinets. Engineers often face cramped panel space, integration challenges, and costly mods when expanding protection. This solution supports DIN EN 61439-3 conformity, CE marking, and RoHS/REACH declarations to meet global safety and sustainability standards. By leveraging a 24-DIN-unit footprint and 250 A rating, the module enables faster panel builds, scalable expansion, and lower total cost of ownership for OEMs and system integrators.
Product Information
Extended Description

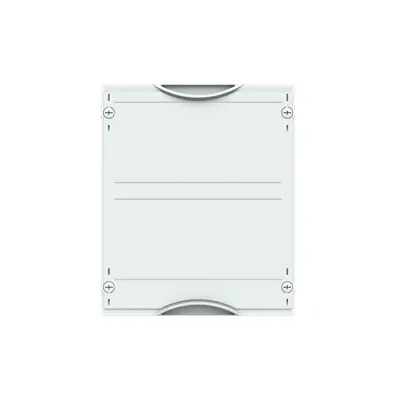

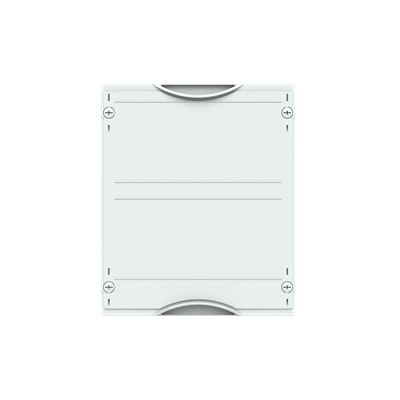

2CPX041377R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Switch disconnector OT not connected, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, unequipped for the installation of 1 NH-switch disconnector OT, for busbar system 4-pole, rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
250 A
Rated Operational Current (Ie)
250 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
OT
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Meter Boards
0
Module Function
Switch disconnector OT not connected
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
1.39 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.39 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 4P design with 250 A rated current enables robust four-pole protection for main distribution. Business impact: supports reliable load handling in compact enclosures, reducing the need for downstream upgrades. Application: ideal for panel cabinets in industrial automation and machine control systems. Feature: Interior fitting module architecture with 24 DIN place units. Business impact: maximizes space efficiency and future expandability within CombiLine panels. Application: suitable for grid units and modular control panels. Feature: Enclosure design with 90-degree press and turn closure and light grey RAL 7035 housing. Business impact: ensures quick, secure closure and consistent aesthetics across installations. Application: preferred for cleanroom-adjacent or visually standardized installations. Feature: Enclosure mounting frame WR or EDF and busbar system 4-pole compatibility. Business impact: simplifies mounting and electrical integration, speeding field assembly. Application: compatible with WR/EDF frames in OEM panel builds. Feature: Compliance and declarations (RoHS, REACH, CE). Business impact: reduces regulatory risk and accelerates certification cycles. Application: essential for global deployments and supplier audits. Feature: 24 DIN place units and interior fitment ready for 1 MT device. Business impact: supports scalable protection schemes with minimal cabinet depth, lowering inventory complexity. Application: ideal for modular switchgear expansions and distribution panels.
Get a Quick Quote for a ABB 2CPX041377R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041377R9999?
Enquire Now
FAQs
Yes. This 4P interior fitting module is designed for CombiLine distribution panels, matching a 24 DIN unit footprint and a 4-pole busbar system. It is mounted in cabinet enclosures with WR or EDF frames and supports up to 250 A, enabling seamless integration with existing switchgear configurations.
Key specs include rated operational voltage up to 400 V, rated current 250 A, and a 4P configuration. Dimensions align with a 24 DIN unit footprint, with a 250 mm width, 300 mm height, and 200 mm built-in depth. The module is designed for interior mounting and closed cover operation in panel cabinets.
Ideal for industrial automation, machine builders, and distribution panels needing compact, scalable protection. The 24 DIN placement supports multi-device configurations within CombiLine systems, making it suitable for electrical protection and circuit control in manufacturing lines, packaging equipment, and process controls.
The module complies with DIN EN 61439-3 for distribution panel systems, carries CE conformity, and provides RoHS and REACH declarations. WEEE is noted as not in scope, and the product comes with related declarations to facilitate customer audits and global deployments.
The compact 24 DIN design, 4P 250 A capability, and WR/EDF mounting compatibility reduce panel footprint and installation complexity. Standardized components shorten commissioning, minimize field modifications, and lower long-term maintenance costs by enabling scalable protection architectures in a single, compliant enclosure.
