2CPX041392R9999
Part Number: 2CPX041392R9999
Product Information
Extended Description

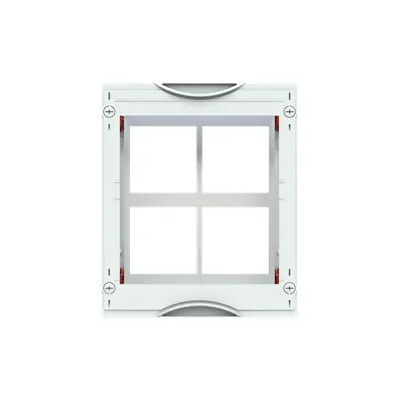

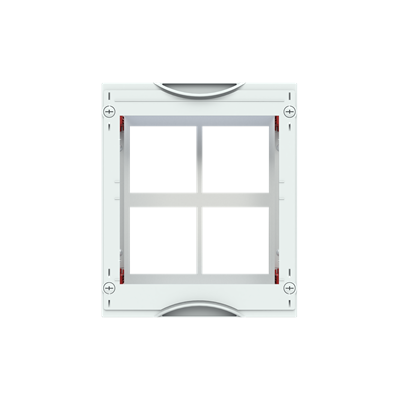

2CPX041392R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Measuring device, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, Fixed mounting, unequipped for the installation of 4 Measuring device 96x96, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 225 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of Mountable Devices
4
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
96x96
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Mounting Type
Fixed mounting
DIN Place Units
24
Meter Boards
0
Module Function
Measuring device
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
225 mm
Section Width
1
Product Net Weight
0.97 kg
Built-In Depth (t2)
225 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.97 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
