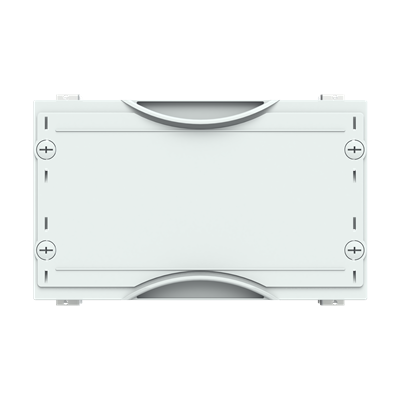

ABB 2CPX041403R9999 Interior module - DIN 61439-3
Part Number: 2CPX041403R9999
Quick Summary
ABB 2CPX041403R9999 interior module provides a compact cabling solution for panel-level cable management in control cabinets. Engineers often struggle with space constraints and rework when mounting cable rails inside cabinets. It is designed to meet DIN EN 61439-3 and 61439-2, with CE conformity and RoHS/REACH compliance to support safe, regulatory-aligned installations. The module supports a 12 DIN place unit grid (1 RU) and a built-in depth of 200 mm, enabling predictable layouts in medium-size enclosures. By integrating with CombiLine interior fittings, it delivers faster installation, easier maintenance, and lower total cost of ownership, while supporting scalable, modular cabinet designs and reliable cable organization for industrial automation projects.
Product Information
Extended Description
2CPX041403R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for cable fastening rail, Grid unit 1 GU = 150 mm, panel width 1 = 250 mm, 12 Space units, , usuable depth of 87 mm up to 142 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
12
Meter Boards
0
Module Function
cable fastening rail
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
98bb239c-8916-49ed-a0f0-03c96aef77fc Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
150 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
0.63 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.633 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
The ABB 2CPX041403R9999 interior module is designed to standardize panel cabling with 12 DIN place units across a 250 mm width and 150 mm height, while offering a built-in 200 mm depth that accommodates a usable depth range of 87 to 142 mm. This precise geometry simplifies cabinet planning and reduces field configuration time, delivering measurable efficiency gains on large-scale automation projects. The light grey plastic cover (RAL 7035) and a 90-degree press-and-turn closure provide robust protection with easy access for maintenance in busy control rooms, while WR or EDF enclosure mounting frames deliver flexible installation across a variety of cabinet depths. In addition, its compatibility with the CombiLine interior fitting system enables rapid swaps and modular upgrades as plant layouts evolve. RoHS and REACH compliance, along with SCIP/WEEE considerations, minimize regulatory risk and support sustainable procurement strategies. These features contribute to lower total cost of ownership by streamlining installation, reducing maintenance labor, and enabling scalable, mult-panel configurations across industrial facilities.
Get a Quick Quote for a ABB 2CPX041403R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041403R9999?
Enquire Now
FAQs
The interior module is designed for CombiLine systems, supporting a 12 DIN place grid (1 RU) within a 250 mm width and 150 mm height. It accommodates a 200 mm built-in depth with adjustable usable depth from 87 to 142 mm, enabling fast, standardised assemblies in distribution panels and control cabinets. This compatibility minimizes field modifications and speeds up panel deployment.
The module is rated for a maximum 400 V operational voltage, suitable for typical distribution and control cabinet applications. It is designed to handle standard panel cabling rails without introducing excessive depth or weight, helping maintain safe clearances and compliant wiring practices in industrial enclosures.
Yes. The enclosure mounting frames WR or EDF are specified for this interior fitting module, offering flexible installation across a range of cabinet depths. This compatibility supports scalable layouts, easier retrofits, and reduced hardware diversity on projects that deploy multiple cabinet configurations.
The module complies with DIN EN 61439-3/2 standards, has CE conformity, and adheres to RoHS and REACH requirements. SCIP and WEEE classifications are provided to support regulatory reporting and sustainability goals. These certifications help ensure safe operation, regulatory compliance, and traceability throughout the product lifecycle in regulated industrial environments.
By standardizing the cable management footprint and enabling rapid installation, the module reduces on-site labor, minimizes rework, and lowers total cost of ownership. Its modularity supports future upgrades with minimal cabinet disruption, while robust protection and easy access during maintenance decrease downtime and improve overall equipment availability in automation facilities.
