ABB 2CPX041404R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX041404R9999
Quick Summary
ABB 2CPX041404R9999 interior fitting module is a cabinet-mounted cable management solution for secure cable routing in control cabinets. Engineers often struggle with space constraints and inconsistent mounting when expanding panels, leading to delays and miswiring. Certified to DIN EN 61439-3 and compliant with RoHS and REACH, it also carries CE declarations for CombiLine installations. This module aligns with standard panel-building practices, delivering predictable cable management and scalable space planning for electrical enclosures, while supporting efficient maintenance and future expansion.
Product Information
Extended Description

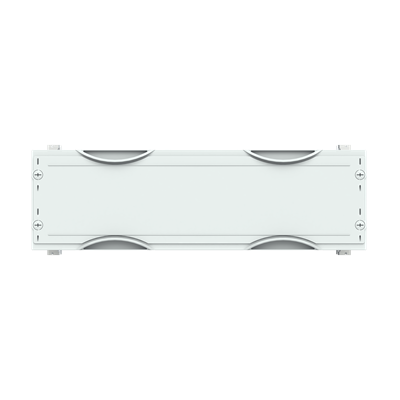

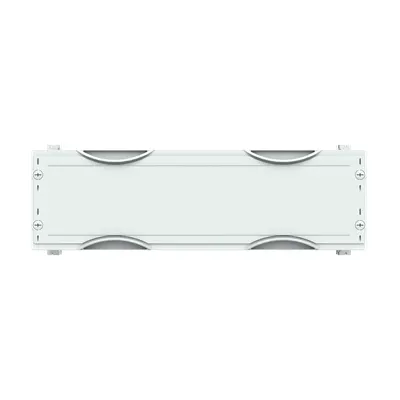

2CPX041404R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for cable fastening rail, Grid unit 1 GU = 150 mm, panel width 2 = 500 mm, 24 Space units, , usuable depth of 87 mm up to 142 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
24
Meter Boards
0
Module Function
cable fastening rail
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
98bb239c-8916-49ed-a0f0-03c96aef77fc Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
150 mm
Product Net Depth / Length
200 mm
Section Width
2
Product Net Weight
1.097 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.097 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: The module offers 24 DIN place units and a 500 mm width, enabling scalable space for dense wiring and reducing panel rework during maintenance within modern control cabinets. Application: Perfect for 24-slot CombiLine installations in cabinet enclosures that demand consistent spacing and accessible cable routing. Feature → Business Impact → Application: Built-in depth of 200 mm supports standard cabinet depths, enabling quick integration without custom shims, minimizing procurement delays. Application: Suitable for new builds and retrofits in industrial panels seeking reliable layout consistency. Feature → Business Impact → Application: 90-degree press and turn closures speed assembly while maintaining secure closure, cutting installation time and improving wiring accuracy. Application: Ideal for high-volume panel builds where repeatability matters. Feature → Business Impact → Application: Plastic covers in light grey (RAL 7035) provide aesthetic consistency and added protection for cable entries, reducing wear and tear during service. Application: Useful in environments with frequent access to wiring ducts. Feature → Business Impact → Application: Compliance with DIN EN 61439-3, RoHS, REACH, and WEEE considerations reduces regulatory risk and supports standardization across facilities. Application: Great for multi-site deployments and supplier alignment.
Get a Quick Quote for a ABB 2CPX041404R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041404R9999?
Enquire Now
FAQs
Begin by confirming cabinet depth compatibility (200 mm built-in depth) and ensure the frame is suitable for WR or EDF mounting. Mount the interior fitting module to the cabinet, align the 24 DIN places with your panel grid, and secure the system using the 90-degree closure mechanism. Verify that supply voltage does not exceed 400 V and that wiring follows standard CombiLine routing practices for reliable operation.
The module supports a maximum operational voltage of 400 V, with 24 DIN place units and a 500 mm width. It has a built-in depth of 200 mm, weighs approximately 1.097 kg, and uses plastic covers in light grey (RAL 7035). It is designed for interior fitting in cabinets and is compatible with DIN EN 61439-3/2 standards, RoHS, REACH, and WEEE considerations.
Yes. The 2CPX041404R9999 is explicitly described as an interior fitting module for CombiLine, providing 24 DIN spaces and a 500 mm width to align with standard panel grids. Its design supports cabinet-mounted cable fastening rails and integrates smoothly with existing CombiLine installations for consistent, scalable wiring layouts.
The module includes CE declarations and adheres to RoHS and REACH regulations, with a declared WEEE category of Product Not in WEEE Scope. It also conforms to DIN EN 61439-3 and DIN EN 61439-2 standards, ensuring regulatory compliance for electrical enclosures in panel buildings and industrial facilities.
The 2CPX041404R9999 delivers faster installation through standardized 24-slot spacing and a quick-access closure system, reducing commissioning time and wiring errors. Its durable construction and alignment with industry standards simplify future expansions, lowering maintenance downtime and supporting predictable long-term ROI for panel builders and systems integrators.
