2CPX041409R9999
Part Number: 2CPX041409R9999
Product Information
Extended Description

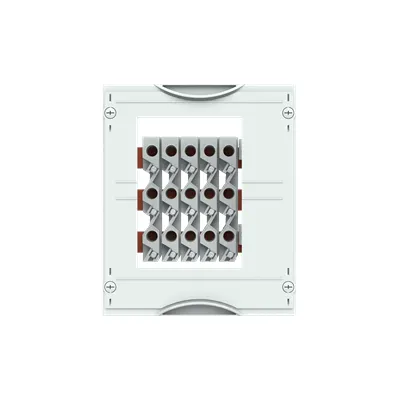

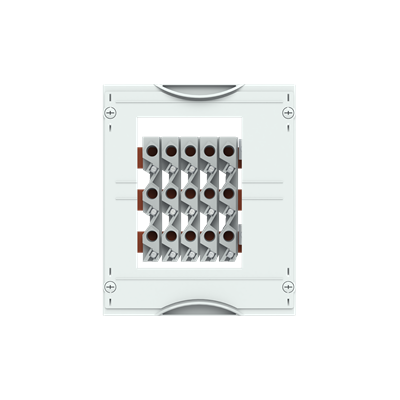

2CPX041409R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Busbar system 60 mm horizontal, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, equipped with 5 Mounting fuse socket D02, Equipment manufacturer: ABB, Neozed / Diazed, for busbar system 3-pole, Busbar alignment: horizontal, with busbar holders ZX146, Busbar center distance: 60 mm, for maximum 3 Cu busbars, (busbars must be ordered separately), rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
250 A
Number of Poles
3P
Number of DIN Rails for Mounting
0
Number of Mountable Devices
5
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR or EDF
Device
D02
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Fuse Type
D02
Mounting Type
Rail system
Mounting Orientation
Horizontal
Accessories Available
Yes
DIN Place Units
24
Meter Boards
0
Module Function
Busbar system 60 mm horizontal
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
1.657 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.657 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002275 - Distributor assembly D-system fuse systems
ETIM 9
EC002275 - Distributor assembly D-system fuse systems
eClass
V11.0 : 27400621
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
