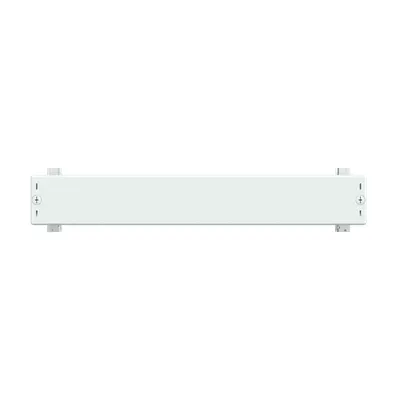

ABB 2CPX041423R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX041423R9999
Quick Summary
ABB 2CPX041423R9999 interior fitting module provides a robust touch guard solution for cabinet-mounted protection in CombiLine systems. Engineers often struggle with space constraints and wiring access in control cabinets, and this module streamlines layout to speed assembly. It carries CE marking and RoHS/REACH declarations, and complies with DIN EN 61439-3 and DIN EN 61439-2 standards, ensuring regulatory alignment. With a 12‑DIN placement in a 500 mm wide panel and a 120 mm built-in depth, it enables predictable enclosure design, reducing installation time and lifecycle costs. Its 0.5 GU height (75 mm) and closed cover design deliver durable protection while the light grey finish supports long-term maintenance and a consistent plant appearance. This translates to faster panel commissioning and safer, compliant operation in production lines.
Product Information
Extended Description
2CPX041423R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for touch guard, Grid unit 0.5 GU = 75 mm, panel width 2 = 500 mm, 12 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
DIN Place Units
12
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
75 mm
Product Net Depth / Length
120 mm
Section Width
2
Product Net Weight
0.176 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.183 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 12 DIN place units integrated in a 500 mm wide cabinet → Business Impact: High-density control panel design reduces footprint and simplifies part count → Application: Ideal for distribution panels and CombiLine cabinets used in automotive, process and manufacturing environments. Feature: Touch guard with 90-degree closure and closed cover → Business Impact: Improves operator safety and protects live components, lowering risk of accidental contact → Application: Useful in high-traffic control areas and panel assemblies requiring compliant protection. Feature: Enclosure Mounting Frame WR or EDF + Interior fitting module → Business Impact: Flexible mounting options support varied enclosure designs and retrofit projects, cutting install time → Application: Fits a range of ABB CombiLine systems and customer cabinet inventories. Feature: Material finish and color (Plastic cover, Light grey, Grey cover, RAL 7035) → Business Impact: Durable, maintenance-friendly aesthetics with consistent plant appearance, aiding color-coded wiring and layout clarity → Application: Suited for new builds and modernization efforts with standardized visual cues. Feature: RoHS/REACH compliance and DIN EN standards → Business Impact: Regulatory risk mitigation and supply-chain confidence, reducing compliance-related delays → Application: Critical for regulated industries and international deployments where traceability matters.
Get a Quick Quote for a ABB 2CPX041423R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041423R9999?
Enquire Now
FAQs
Yes. The module supports WR and EDF enclosure mounting frames, aligning with the interior fitting module design to simplify mounting in ABB CombiLine cabinets and other compatible enclosures.
The unit provides 12 DIN place units within a 500 mm wide panel and has a built-in depth of 120 mm with a 75 mm (0.5 GU) height, facilitating high-density, predictable enclosure layouts.
This module is ideal for CombiLine interior fittings, distribution panels, and cabinet assemblies in manufacturing, process automation, and power distribution where touch safety and compact layouts are required.
It complies with DIN EN 61439-3 and DIN EN 61439-2, and carries CE marking with RoHS and REACH declarations, supporting regulatory alignment across European markets.
The closed-cover design and durable plastic enclosure reduce maintenance needs and exposure to dust or debris. Higher packing density lowers cabinet footprint, shortening commissioning time and reducing total cost of ownership over the equipment lifecycle.
