2CPX041455R9999
Part Number: 2CPX041455R9999
Product Information
Extended Description

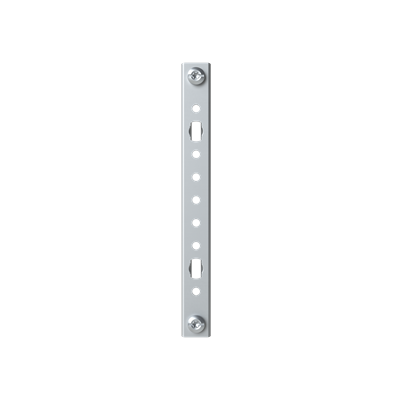

2CPX041455R9999 ABB: Vertical EDF profile rail, installed in the cabinet, for 1 RE (150 mm), for mounting modules up to 400 A, includes mounting screws. The system component is suitable for the EDF mounting frame.
Model Number
Mounting rail
Number of Panel Heights
1
Enclosure Type
Slide rails
Enclosure Type of Height
0000
Mounting Type
Screw mounting
Surface Finishing
Galvanised
Material
Steel
Mounting Position
vertical
DIN Place Units
0
Meter Boards
0
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
16 mm
Product Net Height
150 mm
Product Net Depth / Length
20 mm
Product Net Weight
0.166 kg
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.166 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002518 - Profile (enclosure/cabinet)
ETIM 9
EC002518 - Profile (enclosure/cabinet)
eClass
V11.0 : 27180907
Object Classification Code
U
