ABB 2CPX041471R9999 Main Circuit Breaker Tmax XT1 - 400 V
Part Number: 2CPX041471R9999
Quick Summary
2CPX041471R9999 Main circuit breaker Tmax XT1 interior fitting module delivers a compact MCCB solution for control panels. Engineers often struggle with space, installation speed, and panel integration when sourcing separate MCCB components. It supports DIN EN 61439-3 and DIN EN 61439-2, with CE declarations and RoHS/REACH compliance to streamline approvals and procurement. Designed for panel builders and automation projects, it integrates directly into a 24‑space busbar system, improving installation efficiency and ongoing service.
Product Information
Extended Description

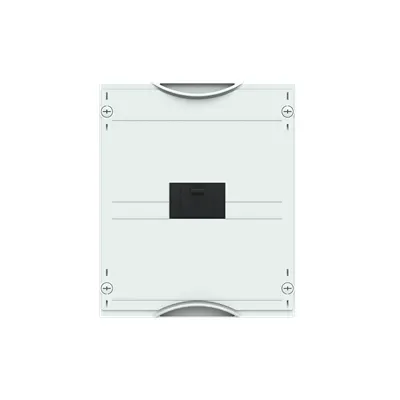

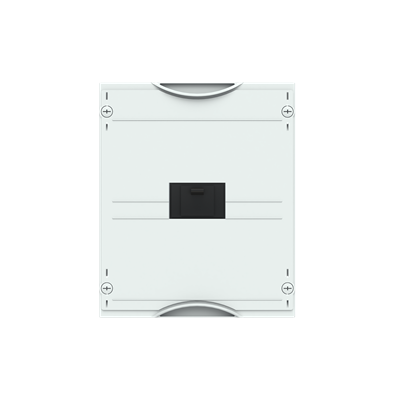

2CPX041471R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Main circuit breaker Tmax connected, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, equipped with 1 MCCB XT1, Equipment manufacturer: ABB, Tmax XT, for busbar system 3-pole, rated current maximum 100 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
100 A
Rated Operational Current (Ie)
100 A
Number of Poles
3P
Number of Switches
1
Number of Mountable Devices
1
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR or EDF
Device
XT1
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Module Function
Main circuit breaker Tmax connected
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
1.81 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.887 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: The interior fitting module format for CombiLine reduces cabinet footprint while simplifying wiring and mounting, enabling faster boot-up and reduced space conflicts in control panels. This translates to lower installation costs and easier future upgrades in distribution cabinets. Application: panel builders seeking compact, modular MCCB solutions will gain from straightforward integration within WR or EDF mounting frames and a 3P 100 A Tmax XT1 configuration. Feature → Business Impact → Application: 24 DIN place units support scalable expansion and migration paths, enabling phased capacity upgrades without major rework in existing enclosures. Application: automation and machine control panels that require flexible space planning and future-proofing. Feature → Business Impact → Application: RoHS and REACH compliance plus DIN EN 61439-3/2 conformity reduce regulatory risk and qualification time, easing supplier audits and plant approvals. Application: regulated industries and multi-site deployments. Feature → Business Impact → Application: The XT1 device and built‑in 90-degree closure simplify installation and maintenance, reducing commissioning time and service downtime. Application: panel retrofits and new builds focusing on ease of access and reliable protection.
Get a Quick Quote for a ABB 2CPX041471R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041471R9999?
Enquire Now
FAQs
The module is designed for CombiLine interior fitting configurations and mounts in cabinets using WR or EDF enclosure frames. It fits the 24 DIN space layout and is intended for 3P Tmax XT1 MCCB installations, enabling straightforward integration with existing busbar systems and control cabinets.
The unit is rated for 400 V operational voltage, 100 A rated current, and 3 poles. It supports a single MCCB with XT1, suitable for integration in 24 DIN spaces within a panel, and is intended for use in 3P distribution applications with Tmax XT protection.
Industries with compact control panels, machine builders, and process automation implement 24‑space Tmax XT1 interior modules to optimize space in distribution panels, CombiLine busbar systems, and cabinet assemblies, achieving faster commissioning and easier future upgrades in manufacturing, oil & gas, and utilities sectors.
The module complies with DIN EN 61439-3 and DIN EN 61439-2 standards, accompanied by CE declarations and RoHS/REACH statements. WEEE categorization is noted, and the RoHS date is 2024-09-03, supporting regulatory alignment and supplier qualification processes.
With the XT1 device pre-integrated and a robust interior mounting design, maintenance access is improved and downtime reduced. The compact 250 x 300 x 120 mm footprint, 24‑space capacity, and compliance features lower total cost of ownership by speeding installation, simplifying future upgrades, and ensuring consistent regulatory compliance across sites.
