ABB 2CPX041472R9999 Main circuit Tmax connected - DIN EN 61439-3
Part Number: 2CPX041472R9999
Quick Summary
ABB 2CPX041472R9999 Main circuit breaker Tmax connected provides reliable three-pole protection for compact panel interiors. Designers and procurement teams often struggle with limited cabinet space, mounting compatibility, and costly rework when adding protection. This solution complies with CE conformity and DIN EN 61439-3 safety standards, and RoHS/REACH requirements to reduce risk and ensure regulatory readiness. With 24 DIN places, an XT1 MCCB, and a 160 A rating, it fits modern industrial panels while optimizing install efficiency. Using this module in CombiLine busbar layouts enhances serviceability, simplifies spare part logistics, and lowers total cost of ownership over the panel lifecycle.
Product Information
Extended Description

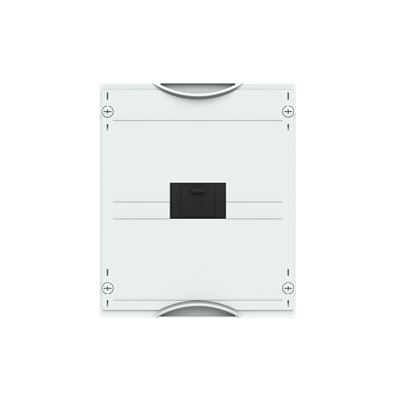

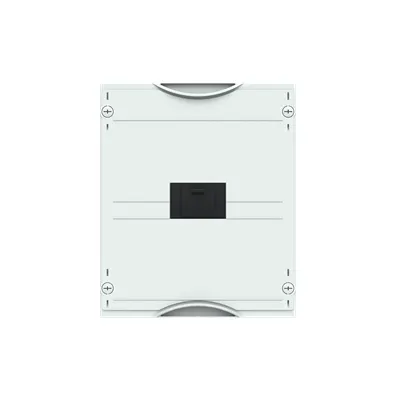

2CPX041472R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Main circuit breaker Tmax connected, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, equipped with 1 MCCB XT1, Equipment manufacturer: ABB, Tmax XT, for busbar system 3-pole, rated current maximum 160 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
160 A
Rated Operational Current (Ie)
160 A
Number of Poles
3P
Number of Switches
1
Number of Mountable Devices
1
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR or EDF
Device
XT1
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Module Function
Main circuit breaker Tmax connected
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
1.81 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.887 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | BGV A3
Feature → Business Impact → Application: The 160 A rated current paired with a 3P configuration delivers robust protection for mid-range panels, improving uptime and reducing nuisance trips in manufacturing lines and process controls. This translates to measurable downtime reductions and predictable maintenance cycles in panel assemblies using Tmax XT devices. Application: suitable for 3-pole main protection in compact interior fitting modules within CombiLine busbar systems. Feature → Business Impact → Application: 24 DIN place units maximize enclosure density, enabling high-capacity protection in a 250 mm x 300 mm x 200 mm footprint; users gain more circuits per cabinet without expanding footprint. Application: ideal for space-constrained panelboards in machine cells and process skids. Feature → Business Impact → Application: interior mounting frame WR or EDF simplifies installation and future upgrades, reducing wiring complexity and installation time. Application: fast integration in retrofit projects and new builds. Feature → Business Impact → Application: RoHS/REACH compliance minimizes regulatory risk and enables global sourcing; customers avoid late-stage compliance issues. Application: procurement-ready for international supply chains. Feature → Business Impact → Application: DIN EN 61439-3 certified construction ensures conformity with sector standards, easing customer acceptance and OEM approvals. Application: preferred choice for panel builders targeting compliant, easily auditable protection modules.
Get a Quick Quote for a ABB 2CPX041472R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041472R9999?
Enquire Now
FAQs
Installation begins with confirming enclosure compatibility (interior fitting module, 24 DIN spaces) and mounting the XT1 MCCB on the WR or EDF frame. Route and secure busbars within the 250 x 300 x 200 mm footprint, then connect protective conductors per DIN EN 61439-3 guidelines. The module includes a single MCCB and is designed for a clean, plug-in feathering into a 3P protection scheme, minimizing wiring complexity and enabling faster commissioning.
The device provides a rated current of 160 A with 3 poles (3P) and a maximum rated operational voltage of 400 V. It is designed for interior cabinet mounting and uses the XT1 main circuit breaker within a 24‑slot DIN rail footprint. These specs support safe protection for mid-range panel boards while maintaining compact enclosure requirements and straightforward integration with busbar systems.
Yes. The module is designed to conform to DIN EN 61439-3, which governs low-voltage switchgear assemblies. It also carries CE conformity and RoHS/REACH declarations to align with global regulatory expectations. For OEMs and integrators, this means easier certification processes, consistent safety performance, and smoother approvals for panel builds in manufacturing environments.
The product includes CE Declaration of Conformity and RoHS/REACH declarations. Standards cited include DIN EN 61439-3 and DIN EN 61439-2, along with relevant regional approvals (BGV A3 in some jurisdictions). These declarations help ensure regulatory compliance, traceability, and supplier responsibility during audits and customer reviews.
The XT1 device in an interior fitting module with a 24-DIN unit supports modular maintenance and potential future upgrades without reconfiguring the entire panel. Its compact footprint simplifies service access, reduces wiring rework, and lowers total cost of ownership by enabling quicker part replacement and streamlined spares management within standard 24‑slot interiors.
