ABB 2CPX041473R9999 Main Circuit Breaker - DIN EN 61439-2/3
Part Number: 2CPX041473R9999
Quick Summary
ABB 2CPX041473R9999 main circuit breaker is designed to protect electrical distribution in panel cabinets, delivering reliable overload and short-circuit protection for 3-phase systems. In busy automation environments, space, accessibility and regulatory compliance can constrain panel design; this interior fitting module minimizes footprint while simplifying wiring and maintenance. The unit aligns with CE declarations and DIN EN 61439-2/3 standards, and includes RoHS and REACH compliance for safer, sustainable assemblies. Built for CombiLine installations, it features Tmax XT3, a 24-DIN-slot enclosure, and a 300 by 250 millimeter footprint that fits WR or EDF mounting frames, enabling scalable, modular control panels for new builds or upgrades.
Product Information
Extended Description

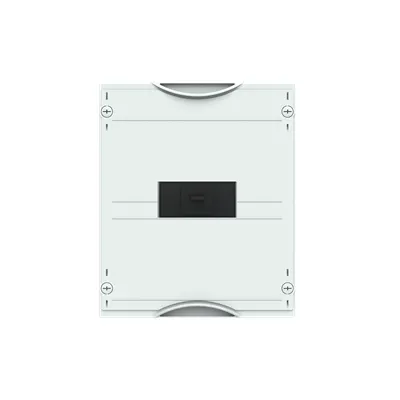

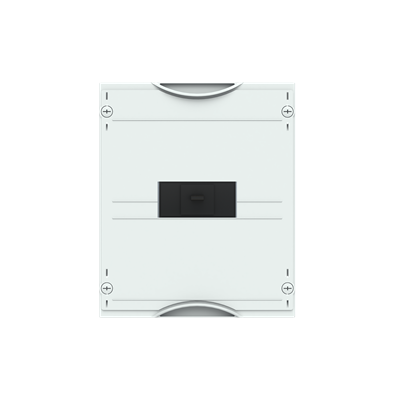

2CPX041473R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Main circuit breaker Tmax connected, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, equipped with 1 MCCB XT3, Equipment manufacturer: ABB, Tmax XT, for busbar system 3-pole, rated current maximum 200 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
200 A
Rated Operational Current (Ie)
200 A
Number of Poles
3P
Number of Switches
1
Number of Mountable Devices
1
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR or EDF
Device
XT3
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Module Function
Main circuit breaker Tmax connected
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
2.4 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.5 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 3P Tmax XT3 main circuit breaker integrated in an interior fitting module. Business Impact: Provides reliable protection for 200 A, 400 V three-phase circuits with reduced risk of equipment damage and fewer field failures. Application: Ideal for control panels in automation environments requiring compact, plug-in protection in CombiLine systems. Feature: 24 DIN place units with 250 mm width and 300 mm height footprint. Business Impact: Maximizes panel density without sacrificing accessibility, enabling lean cabinet design and easier future upgrades. Application: Suitable for new builds and retrofits in distribution panels and busbar systems. Feature: Enclosure mounting options WR or EDF and built-in with a single XT3 device. Business Impact: Simplifies installation and serviceability, cutting commissioning time and on-site labor. Application: Panel builders deploying WR/EDF frames in modular automation cabinets. Feature: RoHS, REACH, CMRT, and WEEE compliance with CE declarations. Business Impact: Reduces regulatory risk and waste handling costs while supporting sustainable manufacturing. Application: OEMs and end users requiring traceable material compliance for European markets. Feature: 3-pole design, 1 switch, and 1 mountable device configuration. Business Impact: Clear, straightforward protection scheme with predictable maintenance and replacement cycles. Application: Distributed protection in 3P automation cells and busbar-based panels. Feature: DIN EN 61439-2/3 compliance and data sheet availability. Business Impact: Ensures predictable performance and compatibility with standard panel-building practices. Application: Panel builders aligning with European design standards for safety and interoperability.
Get a Quick Quote for a ABB 2CPX041473R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041473R9999?
Enquire Now
FAQs
The MCCB is designed for interior fitting modules with 24 DIN spaces and a 250 x 300 mm footprint. Install in WR or EDF mounting frames, connect the 3P Tmax XT3 device, and secure the 90-degree closure. The modular design supports quick plug-in replacement and simplifies wiring for panel builders upgrading existing CombiLine cabinets.
Rated Operational Voltage is up to 400 V, with a Rated Current of 200 A. It is a 3-pole (3P) device with 1 switch and 1 mountable device, designed for Tmax XT3 protection within panel cabinets and busbar systems.
Yes. It carries CE declarations and complies with DIN EN 61439-2/3. It is RoHS compliant with the stated RoHS date, REACH compliant, and aligned with WEEE reporting, ensuring regulatory readiness for European panel builders and OEMs.
Ideal for control panels and distribution cabinets in automation lines, it protects 3P systems up to 200 A and integrates with CombiLine interior fittings. Its compact footprint and 24 DIN spaces make it suitable for busbar-based panel designs and scalable OEM assemblies.
The XT3-based MCCB supports modular replacement, reducing downtime during servicing. Its compact interior fitting design lowers cabinet footprint, improves accessibility, and helps meet regulatory compliance, contributing to lower lifecycle costs and faster upgrades in automation projects.
