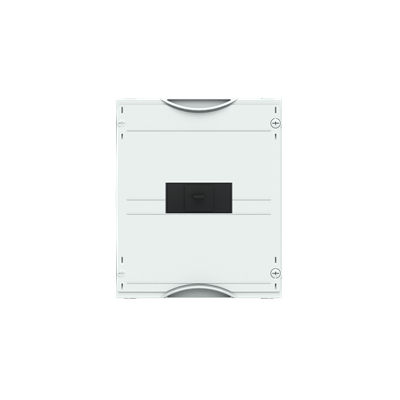

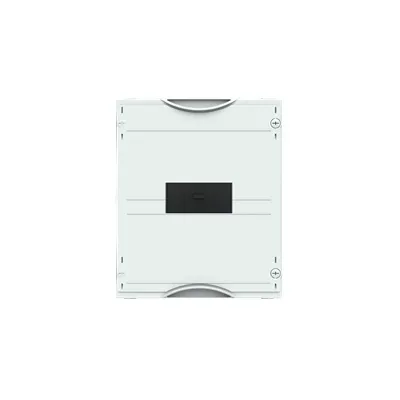

ABB 2CPX041474R9999 Circuit breaker Tmax - 400 V
Part Number: 2CPX041474R9999
Quick Summary
ABB 2CPX041474R9999 is a Tmax connected main circuit breaker module designed for panel-level protection in industrial control cabinets. Engineers often struggle with space, fast integration, and regulatory compliance when upgrading power distribution in compact cabinets. It complies with CE safety standards and DIN EN 61439-3, while RoHS/REACH declarations support compliance across European supply chains. Designed for panel builders and distribution panel systems, it integrates XT3 devices for reliable protection. The interior fitting module is sized for grid unit 2GU and 24 DIN places, enabling future expansion without cabinet redesign. The enclosure uses a light-grey WR/EDF frame with a 90-degree closure, reducing maintenance and installation time, while delivering robust electrical protection across demanding environments.
Product Information
Extended Description
2CPX041474R9999 ABB: Interior fitting module, CombiLine, mounted in cabinet, for Main circuit breaker Tmax connected, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, equipped with 1 MCCB XT3, Equipment manufacturer: ABB, Tmax XT, for busbar system 3-pole, rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
250 A
Rated Operational Current (Ie)
250 A
Number of Poles
3P
Number of Switches
1
Number of Mountable Devices
1
Enclosure Module Equipment
Includes Devices
Enclosure Mounting Frame
WR or EDF
Device
XT3
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Module Function
Main circuit breaker Tmax connected
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B
Business To Consumer
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
2.4 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.5 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Interior fitting module design for CombiLine, optimized for Tmax connected MCCBs. Business Impact: Improves cabinet density and wiring organization, enabling 24 DIN spaces within a 300 x 250 x 200 mm footprint while preserving service access. Application: Ideal for panel builders updating distribution panels in factory controls where space, inspection, and future expansion are critical. Feature: 3-pole XT3 MCCB integrated into the unit. Business Impact: Centralizes overcurrent protection for up to 250 A per pole, shortening fault isolation times and reducing field wiring. Application: Suitable for 3P 250 A circuits in grid units and 24 DIN configurations within control cabinets. Feature: Enclosure frame options WR or EDF with 90-degree closure. Business Impact: Simplifies installation, alignment, and maintenance, enabling quick retrofits and consistent panel aesthetics. Application: Works with 24 DIN place units with 200 mm built-in depth, enabling modular upgrades for expanding plant layouts. Feature: RoHS and REACH declarations with CE conformity. Business Impact: Regulatory compliance reduces procurement risk, supports EU supply chains, and aligns with sustainable manufacturing. Application: Suitable for European distribution panels and WEEE considerations for small equipment. Feature: 24 DIN place units and 250 A nominal current. Business Impact: Scales with future expansion while maintaining predictable protection thresholds. Application: Ideal for modular power distribution in industrial automation and panel building projects.
Get a Quick Quote for a ABB 2CPX041474R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041474R9999?
Enquire Now
FAQs
Begin by selecting a WR or EDF enclosure frame compatible with 24 DIN units and a 200 mm built-in depth. Mount the XT3 3P MCCB inside the interior fitting module, connect incoming and outgoing conductors per the panel's wiring diagram, and secure the unit with the 90-degree closure. Confirm voltage and current ratings (up to 400 V and 250 A) match the protected circuit. Close the cabinet, test insulation and trip settings, and document the configuration for compliance and future maintenance.
The module supports rated operational voltage up to 400 V and rated/current operational current up to 250 A. It is a 3-pole (3P) device with a single switch, designed for 24 DIN place units. The enclosure is designed for interior fitting within a grid unit of 2GU and a cabinet depth of 200 mm, suitable for panel builders in industrial control environments.
Yes. The ABB 2CPX041474R9999 is specified for use with WR or EDF enclosure mounting frames. This provides flexible mounting options, simplifies retrofits, and ensures alignment with existing panel architectures. The 90-degree closure design also aids in quick installation and service access within 24-DIN unit racks.
The module carries CE safety compliance and RoHS declarations, with REACH information indicating no substances above 0.1 mass percentage. The WEEE category is 5 for small equipment, and the product is designed to support EU Directive 2011/65/EU and 2015/863. These declarations help streamline procurement and regulatory reporting for European projects.
This module is ideal for panel builders upgrading distribution panels and control cabinets in factory automation. It provides a 24-DIN space, a 3P XT3 MCCB up to 250 A, and a compact footprint suitable for 300 × 250 × 200 mm enclosures. Its plug-and-play XT3 integration, RoHS/REACH compliance, and WR/EDF mounting support accelerate installation, reduce wiring errors, and improve uptime.
