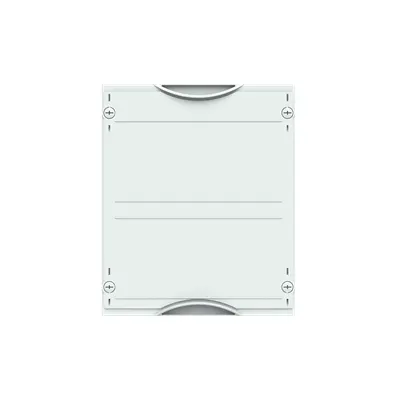

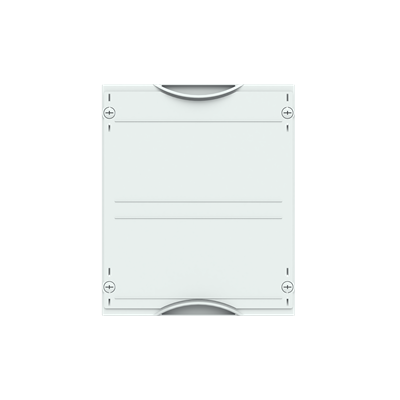

ABB 2CPX041640R9999 Interior fitting module - EN 61439-3
Part Number: 2CPX041640R9999
Quick Summary
ABB 2CPX041640R9999 interior fitting module provides a robust mounting solution for modular distribution panels used in control rooms and switchgear installations. Engineers often face limited mounting depth, misaligned enclosures, and slow commissioning, which this plate helps resolve with stepless adjustability and a compact footprint. It carries CE conformity with EU RoHS and REACH declarations and aligns with DIN EN 61439-2/3 enclosure standards for safer, compliant assemblies. Designed for reliability in harsh industrial environments, it complements ABB CombiLine systems and supports scalable layouts with 24 DIN places, reducing rework and material waste while speeding panel builds.
Product Information
Extended Description
2CPX041640R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Mounting plate, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 82 mm up to 82 mm, usuable width of 200 mm, usuable height of 266 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Mounting Type
Stepless adjustable via mounting bracket
DIN Place Units
24
Meter Boards
0
Module Function
Mounting plate
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
1.675 kg
Built-In Depth (t2)
120 mm
Thickness
2 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.675 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBMK...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 24 DIN place units enable scalable, high-density mounting for routing and labeling, improving panel organization and future expansion. Business Impact: Faster wiring, easier maintenance, and clearer documentation in control cabinets and factory automation environments. Application: Ideal for 24-unit modular distribution panels in switchgear installations. Feature: 2 mm sheet steel construction delivers durability with manageable weight. Business Impact: Reduced shipping costs and robust enclosure integrity under vibration and thermal cycling. Application: Interior fitting modules within CombiLine systems in industrial environments.Feature: Stepless adjustable mounting bracket simplifies alignment. Business Impact: Shorter commissioning times and fewer shim adjustments, enabling flexible cabinet designs. Application: Retrofit projects and new installations with variable enclosure depths.Feature: Compact dimensions 250 mm W x 300 mm H x 120 mm D support standard cabinet footprints. Business Impact: Streamlined integration with existing enclosures and clear space planning for wiring ducts. Application: Panel builders seeking predictable fit in modular switchgear housings.Feature: Light grey sheet steel with stable finish and 24 U capacity aligns with RoHS/REACH requirements. Business Impact: Compliance assurance, fewer revisions, and consistent aesthetic across installations. Application: Regulated industries requiring EN 61439-2/3 conformity and WEEE considerations.
Get a Quick Quote for a ABB 2CPX041640R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041640R9999?
Enquire Now
FAQs
The mounting plate is designed for CombiLine interior fitting modules, supporting a 24 DIN unit layout and 250x300x120 mm footprint. It uses a stepless mounting bracket for easy alignment within standard cabinets and is compatible with WR or EDF enclosure frames, ensuring a straightforward retrofit or new-build integration.
Key specs include a maximum operating voltage of 400 V, 2 mm thick sheet steel construction, 24 DIN place units, and a built-in depth of 120 mm. The plate is color-coded light grey and is part of the CombiLine system, designed to fit 250 mm width and 300 mm height openings with 24 U capacity for organized wiring.
Yes. It complies with EN 61439-2/3 enclosure standards, carries CE conformity, and adheres to RoHS and REACH declarations. The 2 mm steel build and compliant construction support safe operation in regulated environments, with attention to WEEE considerations and material transparency.
Stepless adjustment via mounting brackets eliminates the need for fixed spacers, enabling precise alignment even when cabinet depths vary. This reduces commissioning time, minimizes rework, and allows quick reconfiguration as system needs evolve, which is particularly valuable in modular automation projects and retrofit scenarios.
The plate supports faster installation due to its adaptable mounting, 24 DIN capacity for organized wiring, and standard 250x300x120 mm footprint, reducing labor time and material waste. Compliance with EN 61439-2/3 and RoHS/REACH lowers risk of non-compliance penalties and future-proofing costs for long-term panel reliability.
