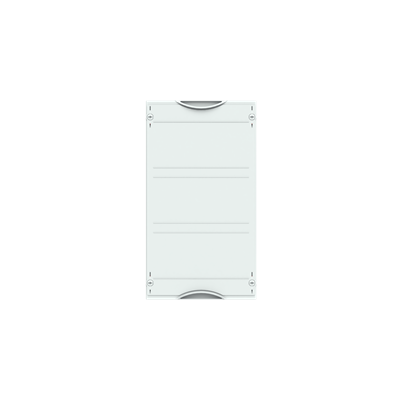

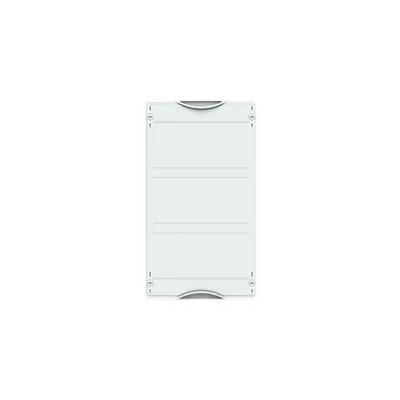

ABB 2CPX041641R9999 Mounting Plate - DIN EN 61439-3
Part Number: 2CPX041641R9999
Quick Summary
ABB 2CPX041641R9999 mounting plate is designed to organize and support interior fitting modules within CombiLine cabinets. This solution helps technicians align 36 DIN place units with a robust 2 mm steel plate and a stepless mounting bracket, reducing installation time and errors. It carries CE conformity and RoHS/REACH compliance, and adheres to DIN EN 61439-2 and 61439-3 standards for safe, panel-ready assembly. Built for modular distribution panels, the plate offers a 450 mm height by 250 mm width footprint with a 120 mm built-in depth, finished in light grey (RAL 7035). These characteristics enable scalable cabinet designs and simpler maintenance in automated environments.
Product Information
Extended Description
2CPX041641R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Mounting plate, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 82 mm up to 82 mm, usuable width of 200 mm, usuable height of 416 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Mounting Type
Stepless adjustable via mounting bracket
DIN Place Units
36
Meter Boards
0
Module Function
Mounting plate
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
2.38 kg
Built-In Depth (t2)
120 mm
Thickness
2 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.38 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBMK...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Interior fitting module for CombiLine with a 2 mm sheet steel mounting plate. Benefit: Delivers robust mechanical support and clean cable management, enabling faster panel integration and reduced field adjustments. Application: Ideal for modular distribution panels in control cabinets across automation facilities. Feature: Stepless adjustable mounting bracket. Benefit: Allows precise alignment and depth tuning up to 82 mm usable depth, minimizing installation rework and ensuring consistent enclosure fit. Application: Practical during cabinet assembly where tolerances vary between frames and panels. Feature: 36 DIN place units and 450x250x120 mm footprint. Benefit: Supports large wiring schemes while maintaining a compact footprint, improving space utilization and simplifying future reconfigurations. Application: Suitable for mid-size to large CombiLine installations with scalable expansion. Feature: RoHS, REACH, and CE compliance with DIN EN 61439-2/3. Benefit: Reduces regulatory risk, simplifies procurement, and ensures safe operation in harsh industrial environments. Application: Essential for regulated industrial automation projects and multi-supplier sourcing. Feature: Light grey surface, 2 mm steel construction, 2.38 kg weight. Benefit: Durable, corrosion-resistant finish with predictable handling and ergonomic weight for field installers. Application: Consistent appearance and dependable durability in service cabinets and switchgear rooms.
