ABB 2CPX041642R9999 Interior Fitting Module - DIN EN 61439-3
Part Number: 2CPX041642R9999
Quick Summary
ABB 2CPX041642R9999 Interior Fitting Module is a mounting plate for CombiLine cabinets that accommodates 48 DIN units in a compact 600 x 250 x 120 mm footprint. This design addresses common challenges of precise alignment and serviceability in modular distribution panels by offering stepless adjustability via a mounting bracket and a robust 2 mm sheet steel enclosure. The solution carries CE conformity, RoHS compliance, and REACH declarations, supporting regulatory requirements for electrical installations and supply chain transparency. For panel builders and integrators, it delivers reliable space management, faster assembly, and reduced rework while maintaining a clean, professional cabinet appearance. Its compatibility with WR or EDF enclosure frames and light grey finish adds planning certainty and installation efficiency in industrial environments.
Product Information
Extended Description

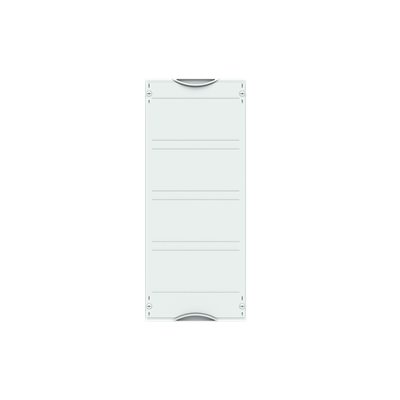

2CPX041642R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Mounting plate, Grid unit 4 GU = 600 mm, panel width 1 = 250 mm, 48 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 82 mm up to 82 mm, usuable width of 200 mm, usuable height of 566 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Mounting Type
Stepless adjustable via mounting bracket
DIN Place Units
48
Meter Boards
0
Module Function
Mounting plate
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
600 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
3.2 kg
Built-In Depth (t2)
120 mm
Thickness
2 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.2 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBMK...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 48 DIN place units on a single mounting plate enables high-density wiring within a compact footprint. This boosts panel capacity without expanding enclosure size, reducing cabinet depth and wiring runs in new builds or upgrades. Application: ideal for large CombiLine interior modules in industrial controllers and process panels. Business impact: lowers project cost per point and speeds up commissioning. Feature: Stepless adjustable mounting bracket lets you align mounting depth and component access precisely. This minimizes rework during commissioning and simplifies future maintenance. Application: works with varying cabinet depths up to built in 120 mm. Business impact: improves first pass installation success and long term serviceability. Feature: Sheet steel construction 2 mm thick with a plastic cover in RAL 7035. This delivers rigid protection against vibration and dust, reducing maintenance and replacement needs. Application: suitable for harsh industrial environments. Business impact: extends cabinet life and lowers lifecycle costs. Feature: Overall footprint 600 mm x 250 mm x 120 mm and weight 3.2 kg. This provides a stable yet manageable module footprint for planning and installation. Application: space planning in control panels and modular distribution setups. Business impact: predictable handling and easier transport. Feature: Regulatory compliance including RoHS, REACH, CE declarations and DIN EN 61439-2/3. Benefit: regulatory readiness and interoperability across European supply chains. Application: electrical installations, panel builds, and OEM assemblies. Business impact: reduces risk and accelerates approval. Feature: Enclosure mounting frame compatibility WR or EDF. Benefit: flexible mounting options and simplified integration with existing cabinets. Application: modular distribution panels in CombiLine ecosystems. Business impact: faster upgrades and scalable architectures.
Get a Quick Quote for a ABB 2CPX041642R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041642R9999?
Enquire Now
FAQs
This interior fitting module is designed for CombiLine systems and is compatible with WR or EDF enclosure frames. The stepless mounting bracket simplifies alignment, while the 2 mm steel construction provides rigidity in typical industrial environments. This compatibility ensures a smooth retrofit or new build without requiring custom adapters or rework.
Key specs include a rated operational voltage up to 400 V, an overall footprint of 600 x 250 x 120 mm, and a weight of 3.2 kg. It carries CE conformity and RoHS and REACH declarations, with DIN EN 61439-2/3 compliance, supporting safe installation and regulatory adherence in European panel projects.
Yes. With 48 DIN place units on a single mounting plate, the solution enables high wiring density within a compact footprint. This reduces cabinet size needs and wiring complexity, making it ideal for modular distribution panels in space-constrained control rooms and process lines.
The stepless adjustment allows precise depth and position alignment, minimizing rework during commissioning and simplifying future access for maintenance. It supports flexible cabinet depths and helps ensure that cables and components align cleanly with the panel face, improving reliability and service speed.
The module carries CE declarations and RoHS/REACH compliance, with a 2 mm steel enclosure and a light grey (RAL 7035) cover. It aligns with DIN EN 61439-3 standards, ETIM classifications, and related regulatory requirements, supporting responsible sourcing and transparent supply chain practices for panel builders.
