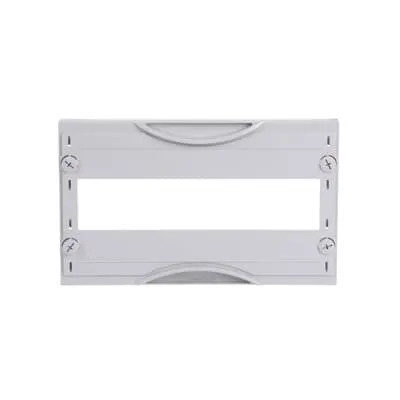

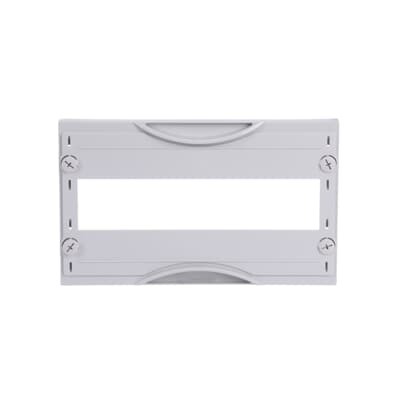

ABB 2CPX041650R9999 Interior Fitting Module - 61439-3
Part Number: 2CPX041650R9999
Quick Summary
The ABB 2CPX041650R9999 Interior Fitting Module enables compact DIN rail mounting for CombiLine distribution panels inside control cabinets. This solution addresses space constraints, wiring complexity, and the need for reliable enclosure construction common in modern panels. It carries key certifications to support safe, compliant installations, including DIN EN 61439-3, CE conformity, and RoHS/REACH declarations, giving buyers confidence in long-term performance and regulatory alignment. By offering 12 DIN place units on a single 150 mm high, 250 mm wide, and 120 mm deep enclosure, it helps optimize cabinet real estate while maintaining accessibility for maintenance. The module also integrates with standard 35 x 15 mm DIN rails, making procurement straightforward for assembly teams and warehouse planners.
Product Information
Extended Description
2CPX041650R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for DIN rail mounting devices, Grid unit 1 GU = 150 mm, panel width 1 = 250 mm, 12 Space units, Row distance in mm: 125 / 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
1
Number of Modular Spacings per DIN Rail
12
Number of Rows
1
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
12
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
150 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
0.48 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.48 kg
E-Number (Norway)
2407833
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBG...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature: 12 DIN place units on a compact 150 mm high, 250 mm wide, 120 mm deep footprint. Business impact: Maximizes cabinet density and reduces panel footprint, enabling more functions per enclosure. Application: Ideal for CombiLine interior fitting in control cabinets where space is at a premium. Feature: Perforated DIN rail mounting with wire holders and 90 degree press-and-turn closure. Business impact: Faster wiring and secure, tidy cable management, cutting installation time by minutes per panel. Application: Interior fitting modules in production lines and switchgear enclosures. Feature: RoHS and REACH compliance with EU declarations and DIN EN 61439-3 compatibility. Business impact: Ensures regulatory compliance and lowers risk of non-conformant installations. Application: Electrical distribution panels in regulated environments. Feature: Built-in compatibility with DIN rail 35 x 15 mm and enclosure frame options WR or EDF. Business impact: Simplifies retrofits and new builds by aligning with existing infrastructure. Application: Retrofits in legacy panels and new CombiLine installations. Feature: Clear dimensions and weight (250 mm x 150 mm x 120 mm; 0.48 kg). Business impact: Predictable fit, simplified logistics, and accurate Y-by-Z planning for rack layouts. Application: Cabinet design and procurement planning across industrial floors. Feature: Comprehensive documentation and installation guidance (MBG mounting instruction, data sheets). Business impact: Reduces commissioning time and mis-wiring risks; improves technician onboarding. Application: Field installations in automation and control cabinets.
Get a Quick Quote for a ABB 2CPX041650R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041650R9999?
Enquire Now
FAQs
This module is designed for standard 35 x 15 mm DIN rails and supports one DIN rail per enclosure. It provides 12 DIN place units across a 250 mm by 150 mm footprint with a 120 mm depth, making it straightforward to integrate into CombiLine interior fittings within control cabinets. The WR or EDF enclosure frames further facilitate quick retrofits and reliable mounting.
The unit is rated for up to 400 V operational voltage and supports a maximum operational voltage of 400 V. It is RoHS and REACH compliant, with documentation aligned to DIN EN 61439-3. These specifications support safe, compliant distribution panel installations in industrial environments.
Yes. The interior fitting module is specifically designed for CombiLine distributions, offering a 12-slot DIN rail configuration and a compact footprint suitable for cabinet interiors. Its 1 G.U. spacing and 125/150 mm row distance enable efficient modular layouts while maintaining accessibility for maintenance and wiring.
Key standards include DIN EN 61439-3, DIN EN 61439-2, and DIN 43880. Compliance is supported by the EU Declaration of Conformity for distribution panel systems, RoHS information with the 2011/65/EU directive and 2015/863 amendment, and REACH declarations. WEEE classification notes the product is not in WEEE scope.
The module’s compatible DIN rail mounting, perforated wire holders, and quick-closure design speed up installation and wiring, reducing labor time and error potential. Its compact 250x150x120 mm footprint enables higher panel density, lowering enclosure costs and improving total cost of ownership for control cabinets and modular automation systems.
