ABB 2CPX041657R9999 Interior Fitting - DIN EN 61439-3
Part Number: 2CPX041657R9999
Quick Summary
ABB 2CPX041657R9999 is an interior fitting module designed for DIN rail mounting in modular distribution panels. Engineers face space constraints and wiring clutter when expanding control cabinets; this module helps by offering a dense, organized enclosure solution. It carries CE conformity, DIN EN 61439-3/2 compliance, and RoHS/REACH declarations, ensuring safe, regulatory-ready installations. The design aligns with CombiLine systems and provides a 72 DIN place capacity within a compact 750 mm width and 300 mm height, all while maintaining easy access and reliable cooling. By choosing this ABB module, manufacturers gain scalable cabinet layouts and faster commissioning without compromising safety or future expandability.
Product Information
Extended Description

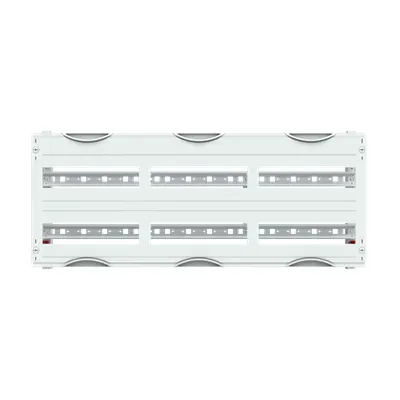

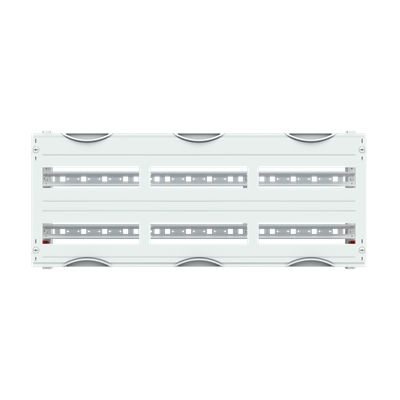

2CPX041657R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for DIN rail mounting devices, Grid unit 2 GU = 300 mm, panel width 3 = 750 mm, 72 Space units, Row distance in mm: 125, assembled with DIN rail 35 x 15 mm with perforation for wire holders, DIN rail 3 panel wide and more are with additional stabilization profile, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
2
Number of Modular Spacings per DIN Rail
36
Number of Rows
2
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
72
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
3
Product Net Weight
2.504 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.604 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBG...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature: Rated Operational Voltage up to 400 V. Business Impact: Enables safe distribution for industrial 400 V systems within modular panels. Application: Use in 2 DIN rail configurations in CombiLine arrangements for reliable power distribution. Feature: High-density capacity with 72 DIN place units across two rows and 36 modular spacings per DIN rail. Business Impact: Increases enclosure density, reducing cabinet footprint and material costs. Application: Ideal for large control cabinets requiring compact, scalable layouts. Feature: Two DIN rails for mounting on a 35 x 15 mm rail with perforations for wire holders. Business Impact: Improves wiring management, simplifies termination, and speeds up commissioning. Application: Common in modular distribution panels where clean cable routing is critical. Feature: Built-in depth of 120 mm, 750 mm width, and 300 mm height with stabilizing profile. Business Impact: Predictable space planning and enhanced enclosure stability. Application: Fits standard cabinet depths while maintaining thermal performance. Feature: RoHS and REACH compliance with CE Declaration and ETIM classification. Business Impact: Regulatory readiness and smoother supply chain qualification. Application: Meets EU environmental and safety requirements for industrial installations.
