ABB 2CPX041658R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX041658R9999
Quick Summary
ABB 2CPX041658R9999 interior fitting module is a DIN rail mounting solution for modular distribution panels within industrial control cabinets. It addresses space constraints and wiring complexity by providing 72 DIN place units across two 2 GU rails, enabling compact, high-density layouts. The enclosure is designed to meet DIN EN 61439-3 and DIN EN 61439-2 requirements, with CE declarations and RoHS/REACH compliance for safe, compliant installations. It integrates seamlessly with ABB CombiLine configurations, supporting scalable panel builds and future expansions. This yields faster assembly, easier maintenance, and improved reliability in automation cabinets across manufacturing environments.
Product Information
Extended Description

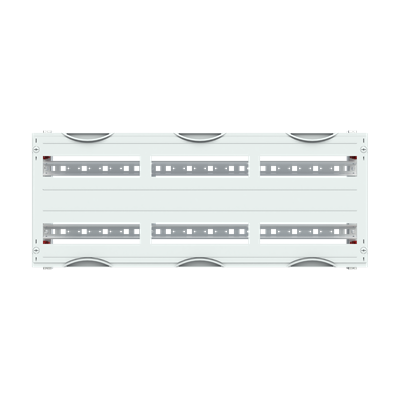

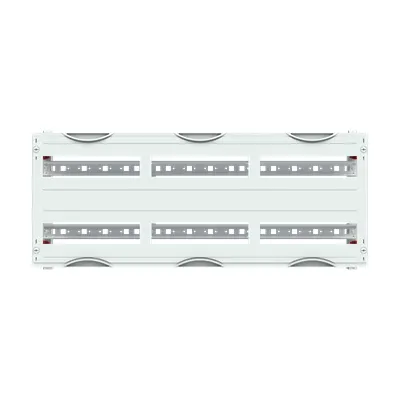

2CPX041658R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for DIN rail mounting devices, Grid unit 2 GU = 300 mm, panel width 3 = 750 mm, 72 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, DIN rail 3 panel wide and more are with additional stabilization profile, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
2
Number of Modular Spacings per DIN Rail
36
Number of Rows
2
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
72
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
3
Product Net Weight
2.861 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.975 kg
E-Number (Norway)
2407836
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBG...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature: Two DIN rails for mounting plus 72 DIN place units. Business impact: enables high-density, organized panel layouts with substantial wiring capacity, reducing footprint and simplifying future expansion. Application: control cabinets requiring dense I/O deployment. Feature: Built-in 120 mm depth with 750 mm width and 300 mm height. Business impact: predictable fit in standard cabinet enclosures, simplifying space planning and retrofit projects. Application: modular distribution panels in existing and new builds. Feature: Assembly with DIN rail 35 x 15 mm with perforation for wire holders. Business impact: cleaner wiring routes, faster wiring and testing cycles, lower rework risk. Application: electrical installations where neat cable management is critical. Feature: 90-degree press and turn closure plus stabilization profiles for wider panels. Business impact: secure closure and easy access during maintenance, reducing outage time. Application: service-friendly CombiLine configurations. Feature: Material and color (plastic covers, light grey). Business impact: cost-effective manufacturing with insulation benefits and visual integration into modern panel aesthetics. Application: panel builders seeking reliable, compliant enclosures. Feature: RoHS and REACH declarations plus DIN EN 61439-3/2 compliance. Business impact: regulatory risk mitigation and faster customer acceptance. Application: certified automation projects in regulated industries. Feature: WEEE category “Product Not in WEEE Scope.” Business impact: streamlined end-of-life planning and environmental compliance. Application: equipment destined for compliant disposal workflows.
Get a Quick Quote for a ABB 2CPX041658R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041658R9999?
Enquire Now
FAQs
Install by aligning two DIN rails (35x15 mm) with pre-drilled perforations for wire holders, securing the module with the included stabilization profiles, and routing cables through the perforations for tidy wiring and quick verification.
The module spans 750 mm in width, 300 mm in height, and 120 mm in depth, with 72 DIN place units across two rows and 36 modular spacings per DIN rail for dense I/O layouts.
Yes. It is designed to meet DIN EN 61439-3 and DIN EN 61439-2 standards and carries a CE declaration of conformity, ensuring regulatory compliance for industrial control cabinets.
Yes. It is specified for CombiLine interior fitting applications, offering seamless integration, scalable panel builds, and consistent installation practices with ABB’s modular approach.
The unit weighs 2.861 kg. It is RoHS compliant, REACH declared, and categorized as WEEE not in scope, simplifying end-of-life considerations in many markets.
