ABB 2CPX041660R9999 DIN rail mounting devices - DIN EN 61439
Part Number: 2CPX041660R9999
Quick Summary
ABB 2CPX041660R9999 is a DIN rail mounting device for modular distribution panels used in process automation. It enables clean, scalable cabinet layouts by organizing control, power, and signaling modules on standard rails. Engineers often struggle with cramped cabinets and tangled wiring in multi-row layouts, which can lead to longer assembly times and higher fault rates. This unit carries CE marking and EN 61439 compliance, plus RoHS and REACH declarations to simplify sourcing, qualification, and regulatory audits across global sites. These certifications reduce risk and streamline inspections, while the design supports future expansion without replacing enclosures. With three DIN rails, 36 DIN place units, and a 120 mm depth, it fits compact spaces yet accommodates growing systems, delivering reliable performance in demanding environments.
Product Information
Extended Description

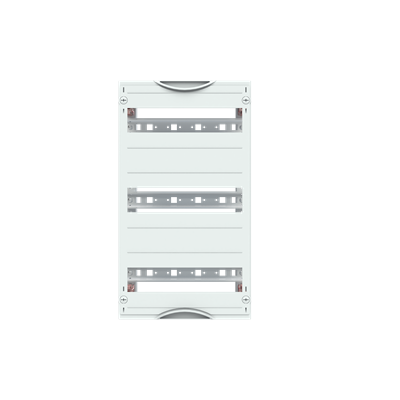

2CPX041660R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for DIN rail mounting devices, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
3
Number of Modular Spacings per DIN Rail
12
Number of Rows
3
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
36
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
1.1 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.1 kg
E-Number (Norway)
2444422
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBG...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Three DIN rails for mounting give you high packing density and easier segregation of circuits. In practice, the 12 modular spacings per rail and 36 DIN place units support control, power, and signaling modules within a single enclosure, enabling scalable expansion for evolving machine architectures. Perforations for wire holders and the 90-degree press and turn closure streamline wiring and panel assembly. The design reduces wiring time and minimizes misroutes, improving overall reliability in complex automation cabinets. Rugged yet lightweight, the enclosure uses plastic covers in a light grey finish that resists wear and remains visually consistent in control rooms. The color and material choices simplify labeling and maintenance while supporting standard cabinet aesthetics. Compliance and materials are front and center. RoHS, REACH, and WEEE considerations, along with EN 61439-2/3 and DIN standards, mitigate regulatory risk and simplify customer audits. DIN rail compatibility and straightforward installation support fast deployment. The unit is designed for standard 35 x 15 mm rails and integrates seamlessly with ABB CombiLine panels, providing reliable performance in 450x250x120 mm footprints. From ETIM to eClass classifications, the product carries widely recognized industry metadata that aids procurement systems and cataloguing.
Get a Quick Quote for a ABB 2CPX041660R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041660R9999?
Enquire Now
FAQs
The unit is designed for standard 35 x 15 mm DIN rails and supports up to three rails. It includes perforations for wire holders and uses a 120 mm built-in depth to maintain a neat, scalable layout across three rows. This makes it straightforward to retrofit into existing ABB CombiLine or similar modular panels.
The module is rated for a maximum operational voltage of 400 V, with a 400 V operating ceiling. It adheres to EN 61439-2 and EN 61439-3 for distribution panels, ensuring safe performance in industrial control cabinet environments while remaining compatible with standard industrial components.
Ideal for modular distribution panels in process automation, control cabinets, and ABB CombiLine installations. Its 3 DIN rails, 36 DIN places, and 120 mm depth support scalable architectures, enabling compact yet expandable cabinet designs suitable for machine builders and automation integrators.
It carries CE marking with EN 61439-2/3 compliance, RoHS and REACH declarations, and WEEE considerations. Additional metadata aligns with ETIM EC002575 and eClass identifiers, helping procurement systems enforce regulatory and sustainability requirements in global supply chains.
By delivering space-efficient layout with three rails and 36 DIN positions, wiring becomes organized and easier to service. EN 61439 compliance reduces audit effort, while RoHS/REACH/WEEE alignment minimizes regulatory risk. Overall, installation time decreases and maintenance planning becomes more predictable in growing automation cabinets.
