ABB 2CPX041663R9999 DIN rail panel - DIN EN 61439
Part Number: 2CPX041663R9999
Quick Summary
ABB 2CPX041663R9999 is a DIN rail mounting module for interior fitting in CombiLine distribution panels, enabling organized, scalable cabinet layouts. When space is tight and wiring must stay tidy, engineers benefit from a modular solution that speeds assembly and future expansion. It carries CE conformity with DIN EN 61439-2/3 and DIN 43880, plus RoHS and REACH declarations, delivering regulatory assurance and long-term reliability. With 108 DIN place units, 3 rows, and a 400 V rating, it supports efficient power and control integration in industrial automation. Using this module in panel projects reduces installation time, simplifies maintenance, and ensures compatibility with other CombiLine components for growing systems.
Product Information
Extended Description

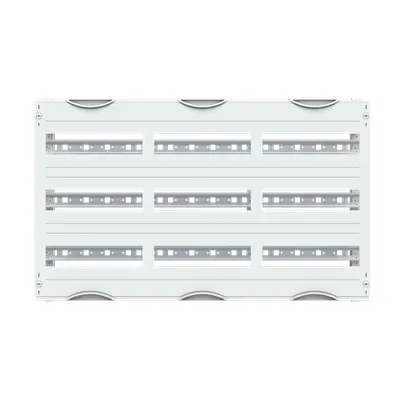

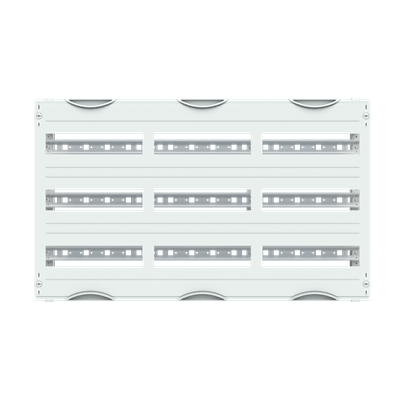

2CPX041663R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for DIN rail mounting devices, Grid unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, Row distance in mm: 125, assembled with DIN rail 35 x 15 mm with perforation for wire holders, DIN rail 3 panel wide and more are with additional stabilization profile, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
3
Number of Modular Spacings per DIN Rail
36
Number of Rows
3
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
108
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
450 mm
Product Net Depth / Length
120 mm
Section Width
3
Product Net Weight
3.412 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.548 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBG...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
High-density DIN rail mounting delivers 108 DIN Place Units across three rows, maximizing space in control cabinets. This density reduces the required enclosure footprint and minimizes wiring complexity, resulting in faster assembly and easier future upgrades. Ideal for medium to large CombiLine installations, this feature supports scalable panel architectures without sacrificing accessibility. Three DIN rails provide flexible mounting for modules and accessories while maintaining orderly wire routing. The structured grid (3 GU = 450 mm) aligns with standard modular spacings, reducing misalignment during field installation and improving reliability. This is especially beneficial for panel builders planning phased expansions or standardized module sets. Rugged interior mounting frame options WR or EDF ensure secure seating within the enclosure, contributing to vibration resistance and long-term stability. The combination of perforated DIN rails and a stabilization profile minimizes vibration-induced wear and simplifies cabling. Durable light-grey finish (RAL 7035) keeps visibility of labels and indicators while resisting weathering in typical indoor plant rooms. The plastic covers simplify cleaning and maintenance, contributing to lower lifecycle costs. Regulatory compliance and material declarations, including EU RoHS, REACH, and CE conformity with EN 61439-2/3, reduce compliance risk for regulated environments. The WEEE classification clarifies disposal, and documentation supports audit readiness. Compatibility and installation advantages: Mounting with DIN rail 35 x 15 mm with perforation for wire holders enables clean, repeatable wiring in new builds and retrofits. Built-in depth of 120 mm matches common frame depths, improving fit in constrained cabinets.
