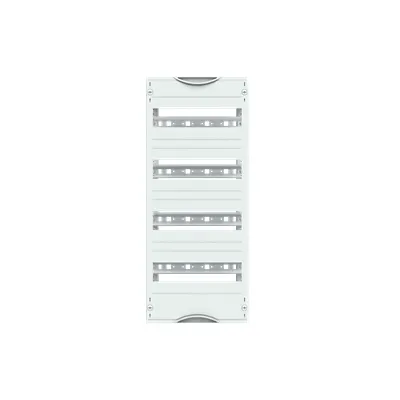

ABB 2CPX041665R9999 DIN rail mounting device - CE certified
Part Number: 2CPX041665R9999
Quick Summary
ABB 2CPX041665R9999 is a DIN rail mounting device designed for modular distribution panels in control cabinets. It mitigates space constraints and wiring complexity by delivering a compact interior fitting module that supports up to 48 DIN units across four rows. The solution carries a CE declaration of conformity and compliance with DIN EN 61439-3 and 61439-2, with RoHS and REACH as standard regulatory considerations. With ABB CombiLine compatibility and a light grey enclosure, it offers predictable installation times and scalable panel architectures, reducing procurement fragmentation and improving maintenance planning for automation projects.
Product Information
Extended Description
2CPX041665R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for DIN rail mounting devices, Grid unit 4 GU = 600 mm, panel width 1 = 250 mm, 48 Space units, Row distance in mm: 125, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
4
Number of Modular Spacings per DIN Rail
12
Number of Rows
4
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
DIN Place Units
48
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
600 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
1.38 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.38 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBG...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
The 4-row, 48 DIN unit grid provides expansive capacity in a compact footprint, enabling large control panel builds without increasing cabinet width or footprint. This translates to reduced enclosure real estate, faster assembly, and clearer cabling segregation for improved reliability in MCCs and machine controls. The mounting system uses four standard DIN rails with 12 modular spacings per rail, offering flexible, scalable channeling to accommodate future I/O expansions and reconfigurations, lowering total cost of ownership over the equipment lifecycle. Perforated wire holders and a 90-degree press-and-turn closure on a light-grey plastic cover simplify installation and maintenance, speeding commissioning and ensuring durable, vibration-resistant connections in harsh industrial environments. Compliance features, including RoHS/REACH and DIN EN 61439 series standards, mitigate procurement risk and support regulator-conscious projects in process automation and energy sectors. The enclosure frames WR or EDF further enhance compatibility with CombiLine panels, enabling plug-and-play integration in evolving control architectures.
Get a Quick Quote for a ABB 2CPX041665R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041665R9999?
Enquire Now
FAQs
The unit supports four standard DIN rails (35 x 15 mm) with perforations for wire holders and is designed as an interior fitting module compatible with ABB CombiLine systems. It uses the WR or EDF enclosure mounting frames and provides a 4-row, 48-DIN-unit grid, enabling plug-and-play integration within modular distribution panels in control cabinets.
The module is rated for up to 400 V operational voltage (maximum 400 V). It supports 4 DIN rails with 12 modular spacings per rail, arranged in 4 rows, and provides 48 DIN place units. The enclosure color is light grey (RAL 7035), with a plastic cover and a 90-degree press-and-turn closure for secure access and neat cable routing.
Yes. It is an interior fitting module designed for CombiLine distribution systems and is described as modular and ready to integrate with ABB’s control panel solutions. Its 4x row configuration and 48 DIN units align with common CombiLine layouts, supporting scalable, configurable panel architectures in evolving automation plants.
The product carries a CE Declaration of Conformity and complies with DIN EN 61439-3 and DIN EN 61439-2, along with DIN 43880. It also supports RoHS compliance (EU Directive 2011/65/EU and 2015/863) and REACH declarations, with WEEE categorization noting the product is not in the WEEE scope, reducing regulatory risk for end users.
Expect faster commissioning due to a plug-and-play interior fitting module, organized wiring from perforated holders, and a robust closure system that reduces wear. The high DIN capacity in a compact footprint minimizes cabinet expansion costs, shortens installation time, and lowers long-term maintenance through standardized ABB components and clear compliance, delivering measurable productivity gains in automation projects.
