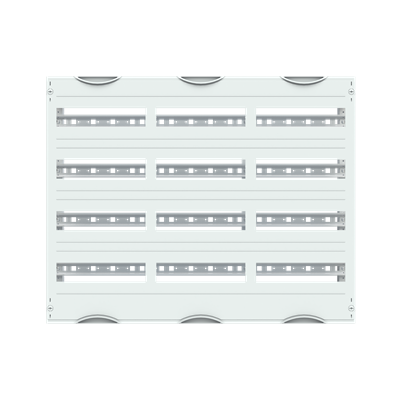

ABB 2CPX041669R9999 DIN Rail Module - CE Compliant
Part Number: 2CPX041669R9999
Quick Summary
ABB 2CPX041669R9999 DIN rail module provides compact interior fitting for modular distribution panels. It helps engineers overcome space constraints and wiring complexity in cabinet builds. The design aligns with CE conformity and key standards like DIN EN 61439-3/2, RoHS, and REACH, ensuring regulator-ready performance. Built for panel builders seeking scalable, compliant mounting with 144 DIN places across four rows, this solution supports efficient space utilization, safer wiring, and faster installation in industrial enclosures. Its 750 mm width, 600 mm height, and 120 mm depth deliver a predictable footprint for layout planning, while the perforated wire holders aid cable management and accessibility. With four DIN rails and 36 modular spacings per rail, it enables dense, orderly, and compliant assemblies.
Product Information
Extended Description
2CPX041669R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for DIN rail mounting devices, Grid unit 4 GU = 600 mm, panel width 3 = 750 mm, 144 Space units, Row distance in mm: 125, assembled with DIN rail 35 x 15 mm with perforation for wire holders, DIN rail 3 panel wide and more are with additional stabilization profile, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
4
Number of Modular Spacings per DIN Rail
36
Number of Rows
4
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
DIN Place Units
144
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
600 mm
Product Net Depth / Length
120 mm
Section Width
3
Product Net Weight
4.277 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.448 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBG...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
Feature → Business Impact → Application: The interior fitting module design maximizes enclosure density, enabling 144 DIN place units across four rows, which translates to higher packing efficiency and reduced cabinet footprint in panel builds. This supports cost-effective space utilization and simplified future scaling in factory automation projects. Feature → Business Impact → Application: Four built-in DIN rails (for mounting) and 36 modular spacings per rail deliver predictable, repeatable layouts, reducing installation time and improving wiring consistency in control cabinets. This directly lowers commissioning risk and expedites time-to-operational status for machine builders deploying modular power distribution. Feature → Business Impact → Application: Perforated wire holders and stabilized profiles simplify cable management, minimize loop heights, and enhance fault isolation. In practice, technicians benefit from cleaner wiring diagrams and faster troubleshooting in industrial environments. Feature → Business Impact → Application: RoHS and REACH compliance, plus CE declarations and DIN EN 61439-3/2 standards, ensure regulatory alignment for regulated sectors like process automation and energy infrastructure, reducing compliance overhead for procurement teams. Feature → Business Impact → Application: The robust light-grey enclosure with a 120 mm built-in depth and 3-section width supports stable mounting in dynamic cabinets, improving vibration resistance and long-term reliability in harsh factory settings.
Get a Quick Quote for a ABB 2CPX041669R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041669R9999?
Enquire Now
FAQs
The unit is designed for DIN rail mounting devices and includes a WR or EDF enclosure mounting frame. Install on standard 35x15 mm DIN rails, using the perforated wire holders for neat cable routing. With four rails and 144 DIN place units, you can plan a scalable layout that aligns with your cabinet depth of 120 mm and width of 750 mm, ensuring a tidy, compliant installation.
The module supports a maximum operating voltage of 400 V and standard operation at 400 V. It complies with CE declarations and is aligned with DIN EN 61439-3/2 and DIN 43880 standards. RoHS and REACH compliance are documented, which is essential for regulated sectors. This ensures safe, reliable performance in electrical installations and control cabinets.
Yes. It is described as an interior fitting module for CombiLine distribution panels, offering 144 DIN place units across four rows and a design optimized for panel builders. The 750x600x120 footprint and stabilized profiles support integration with CombiLine systems while maintaining robust enclosure integrity and wiring accessibility.
Procurement should expect CE conformity with the EU Declaration of Conformity, RoHS compliance per Directive 2011/65/EU and 2015/863, and REACH information confirming absence of substances over 0.1 mass percentage. Additional standards include DIN EN 61439-3/2 and DIN 43880, along with ETIM and eClass classifications, supporting global sourcing and regulatory alignment.
The high-density 144 DIN placement across four rows reduces cabinet footprint and wiring complexity, cutting material costs and installation time. Improved wiring organization with perforated holders lowers fault diagnosis time, while standardized dimensions (750x600x120) simplify layout planning and future scalability, delivering faster project delivery and lower lifecycle maintenance in manufacturing environments.
