ABB 2CPX041671R9999 Interior Fitting Module - CE EN 61439
Part Number: 2CPX041671R9999
Quick Summary

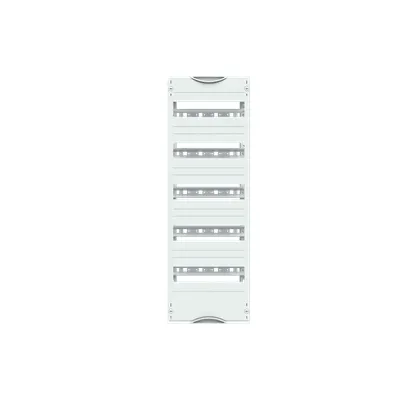

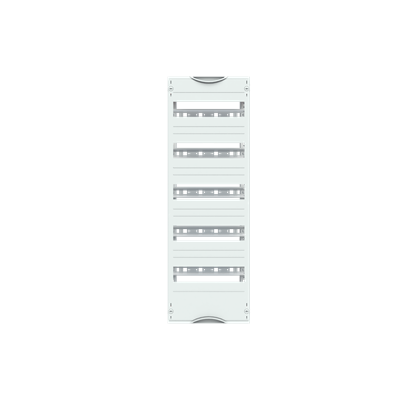

ABB 2CPX041671R9999 is an interior fitting module for DIN rail mounting in modular distribution panels. Engineers often struggle with space constraints and wiring in compact control cabinets. This unit carries CE conformity and DIN EN 61439-2/3 along with RoHS and REACH declarations to ensure safety and compliance. Designed for CombiLine systems, it enables high-density panel performance while simplifying installation, inspection, and future expansion, delivering reliable electrical organization and regulatory alignment for industrial automation projects.
Product Information
Extended Description
2CPX041671R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for DIN rail mounting devices, Grid unit 5 GU = 750 mm, panel width 1 = 250 mm, 60 Space units, Row distance in mm: 125, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
5
Number of Modular Spacings per DIN Rail
12
Number of Rows
5
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
1
DIN Place Units
60
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
750 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
1.65 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.65 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBG...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
The 2CPX041671R9999 offers high-density panel capacity with 60 DIN Place Units across 5 DIN rails, reducing footprint while increasing functional space for I/O and power blocks. Business impact: more components fit within the same enclosure, enabling tighter control cabinets and lower housing costs; application: control panels in automated manufacturing lines and energy distribution cabinets. The grid unit measures 750 mm in height and 250 mm in width with 60 space units and 125 mm row spacing, delivering organized layouts that simplify cable routing and maintenance. Application: 5 rows of modular spacings per DIN rail, improving accessibility for terminations and diagnostics; impact: faster commissioning and easier future expansions. Built-in with a DIN rail 35 x 15 mm system and perforations for wire holders, plus a 90-degree press-and-turn closure and light grey (RAL 7035) covers, the module supports clean, secure wiring and quick servicing; impact: reduced risk of loose connections and faster fault isolation. RoHS and REACH compliance, along with CE declarations and standard DIN EN 61439-2/3, ensure regulatory alignment; impact: mitigates compliance risk and accelerates approvals for panel builds. Compatible with CombiLine interior fitting panels and designed for dependable, scalable installations in industrial environments; impact: supports long-term ROI through density, reliability, and ease of maintenance.
Get a Quick Quote for a ABB 2CPX041671R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041671R9999?
Enquire Now
FAQs
Yes. The unit is designed for grid unit 5 GU (750 mm height) with a panel width of 250 mm, accommodating 5 DIN rails and 60 DIN Place Units. It uses a 35 x 15 mm DIN rail with perforations for wire holders and features a 90-degree closure to streamline termination and maintenance.
The module supports a maximum operating voltage of 400 V. It carries CE conformity with DIN EN 61439-2/3, RoHS compliance, and REACH declarations, ensuring regulatory alignment for safe, compliant panel builds.
Ideal for CombiLine distribution panels and interior control cabinets in industrial automation, providing high-density space for 60 DIN Place Units across 5 DIN rails, while enabling organized wiring and straightforward future expansion.
Key standards include DIN EN 61439-2/3 and DIN 43880; environmental declarations cover RoHS, REACH, and WEEE classification. The product is aligned with ETIM 8/9 and eClass codes for cataloging and procurement systems.
The high-density 60‑unit configuration reduces enclosure footprint, improving space utilization and reducing cabinet costs. Neat wire management and robust construction cut maintenance time, while CE and RoHS/REACH compliance reduce regulatory risk and support faster project approvals.
