ABB 2CPX041672R9999 DIN rail mounting devices - 60 Space Units
Part Number: 2CPX041672R9999
Quick Summary
ABB 2CPX041672R9999 DIN rail mounting devices deliver modular interior fittings for comprehensive cabinet and distribution panels. Engineers often grapple with tight spaces and wiring complexity when deploying 60-space unit configurations, making layouts hard to scale and maintain. This solution addresses those challenges by offering a standardized, scalable interior fitting module designed for CombiLine modular distribution panels and DIN rail mounting. It carries CE conformity, RoHS compliance, REACH declarations, and DIN EN 61439-2/3 standards, ensuring safe, compliant operation in control cabinets. In practice, you gain predictable installation workflows, straightforward compatibility with WR or EDF enclosure frames, and the ability to scale across growing automation architectures.
Product Information
Extended Description

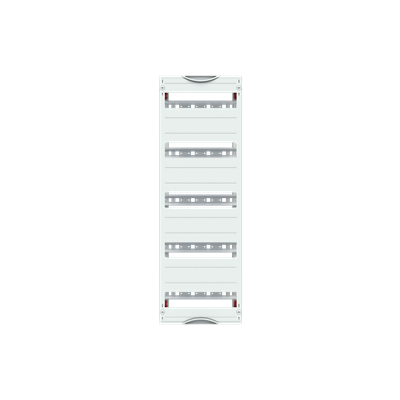

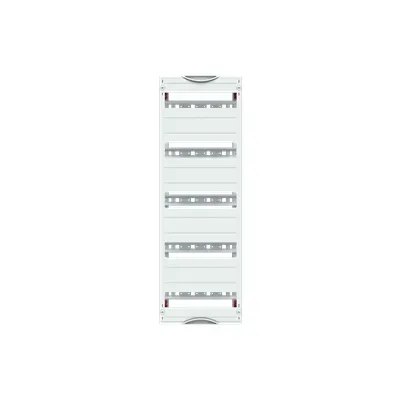

2CPX041672R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for DIN rail mounting devices, Grid unit 5 GU = 750 mm, panel width 1 = 250 mm, 60 Space units, Row distance in mm: 150, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Number of DIN Rails for Mounting
5
Number of Modular Spacings per DIN Rail
12
Number of Rows
5
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
1
DIN Place Units
60
Meter Boards
0
Module Function
DIN rail mounting devices
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
750 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
1.65 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.65 kg
E-Number (Norway)
2444426
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBG...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002575 - Distributor assembly for serial built-in device
ETIM 9
EC002575 - Distributor assembly for serial built-in device
eClass
V11.0 : 27400620
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2 | DIN 43880
60 DIN place units arranged in 5 rows enable dense, organized module deployment with 12 modular spacings per DIN rail. This structure reduces wasted cabinet space and speeds future expansion, improving wiring traceability and serviceability. DIN rails measuring 35 x 15 mm with perforations for wire holders simplify cable management and reduce labor during installation, delivering faster commissioning and lower risk of loose conductors in high-density panels. The 90-degree press and turn closures with a cut-out capable cover provide secure, vibration-resistant closures and quick field adjustments, while the light grey finish (RAL 7035) supports consistent identification in complex layouts. Designed for WR or EDF enclosure mounting frames as an interior fitting module, it fits standard cabinet depths up to 120 mm, with 60 DIN space units and a built-in depth of 120 mm. Material compliance is robust, featuring RoHS declarations, REACH information, and a WEEE classification, which simplifies audits and end-of-life handling. Access to CE declarations and datasheets reinforces confidence during procurement and regulatory checks, reducing risk for regulated industries.
