ABB 2CPX041708R9999 Interior fitting module - DIN EN 61439
Part Number: 2CPX041708R9999
Quick Summary
ABB 2CPX041708R9999 interior fitting module enables modular distribution within control cabinet panels. In crowded panel environments, space planning and wiring clarity are common bottlenecks. The product complies with CE conformity and DIN EN 61439-2/3, and RoHS/REACH declarations. Labeling, installation efficiency, and lifecycle reliability are improved through its configurable 24 DU layout. Its stepless mounting bracket supports adjustable depth and a 2 mm sheet steel enclosure, ensuring fit across different cabinet depths. Together with RoHS/REACH compliance and ETIM/eClass classifications, it streamlines procurement and reduces risk. For integration, it supports standard CombiLine panels and 24 DU configurations, enabling scalable system builds. This combination delivers faster installation, easier serviceability, and long-term cost savings.
Product Information
Extended Description

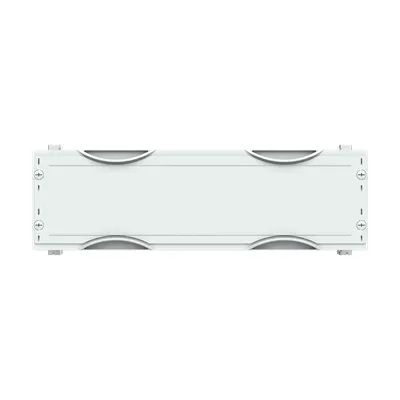

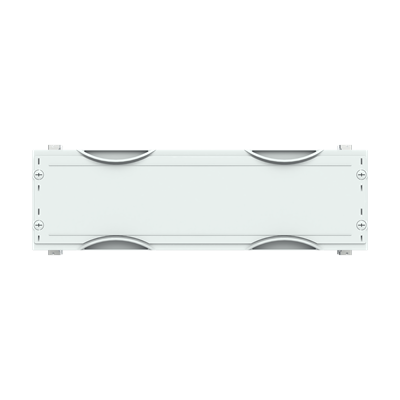

2CPX041708R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Mounting plate, Grid unit 1 GU = 150 mm, panel width 2 = 500 mm, 24 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 103 mm up to 158 mm, usuable width of 438 mm, usuable height of 116 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
Mounting Type
Stepless adjustable via mounting bracket
DIN Place Units
24
Meter Boards
0
Module Function
Mounting plate
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e21fc902-baee-40b1-ba33-69765c51a6d6 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
150 mm
Product Net Depth / Length
200 mm
Section Width
2
Product Net Weight
1.67 kg
Built-In Depth (t2)
120 mm
Thickness
2 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.67 kg
E-Number (Norway)
2407850
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBM...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: The mounting plate provides 24 DIN place units across a 500 mm wide panel and a 150 mm high profile with a 200 mm depth, all in a 2 mm sheet steel enclosure. This configuration delivers a compact, rugged backbone for modular distribution within CombiLine panels, enabling engineers to seat drives, relays, and terminal blocks in a standardized footprint. The result is faster panel assembly, reduced misalignment, and improved cable management in interior fitting modules used in factory automation environments. Feature → Business Impact → Application: Stepless adjustable mounting bracket adds depth flexibility and precise alignment without rework. Paired with a 90-degree closure, installation remains tool-free and repeatable, reducing commissioning time in cabinets with 24 DU footprints and varying cabinet depths. Feature → Business Impact → Application: Material and compliance—sheet steel 2 mm yields robust mechanical integrity; a 400 V maximum rating ensures safe operation for typical industrial power distribution. RoHS and REACH declarations simplify regulatory audits while CE conformity and DIN EN 61439-2/3 compliance reduce risk for manufacturers. Feature → Business Impact → Application: Integration and interoperability—compatible with ABB CombiLine panels, ETIM 8/9, and eClass 27400608 classifications, which streamlines procurement, standardizes part Numbers, and supports scalable automation projects. Feature → Business Impact → Application: Operational efficiency and serviceability—closed cover with 90-degree closure supports neat cable management, rapid inspection, and easier maintenance in evolving control cabinet environments.
