ABB 2CPX041710R9999 Mounting Plate - DIN EN 61439-3
Part Number: 2CPX041710R9999
Quick Summary
ABB 2CPX041710R9999 is a mounting plate for interior fitting modules used in modular distribution panels. This solution helps engineers quickly adapt cabinet depth and mounting spacing to evolving rack standards without costly rework. It carries CE conformity with the EU Declaration of Conformity and meets DIN EN 61439-3/2, RoHS, and REACH requirements in the CombiLine system. Designed for ABB CombiLine interiors, it streamlines module mounting in panel building, reducing installation time while improving serviceability and long-term reliability. The plate's 24 DIN place units and 2 mm sheet steel construction support dense, organized layouts, while the 90-degree closure and stepless mounting bracket simplify field adjustments and reconfigurations.
Product Information
Extended Description

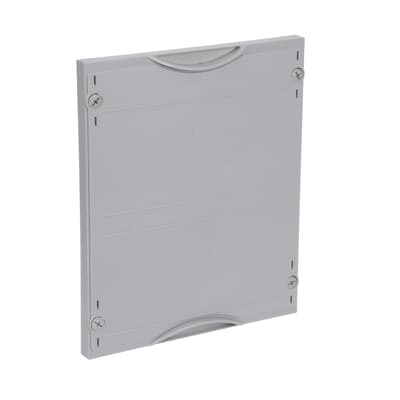

2CPX041710R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Mounting plate, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 103 mm up to 158 mm, usuable width of 188 mm, usuable height of 266 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Mounting Type
Stepless adjustable via mounting bracket
DIN Place Units
24
Meter Boards
0
Module Function
Mounting plate
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e21fc902-baee-40b1-ba33-69765c51a6d6 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
1.82 kg
Built-In Depth (t2)
120 mm
Thickness
2 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.82 kg
E-Number (Norway)
2444438
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBM...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Stepless adjustable mounting bracket. Benefit: Enables precise alignment without per-job hardware changes, reducing rework and accelerating panel commissioning. Application: Ideal for modular distribution panels where depth and width must adapt to evolving cabinet designs. The ABB 2CPX041710R9999 supports rapid reconfiguration in live plant environments, translating to measurable installation time savings and improved reliability of installed systems. Feature: 24 DIN place units in a compact 300 mm x 250 mm x 200 mm footprint. Benefit: Optimizes space planning in crowded switchgear rooms while preserving service accessibility. Application: Suitable for high-density ABB CombiLine interiors where space is at a premium, enabling organized, scalable layouts without sacrificing performance. Feature: 2 mm sheet steel construction with 120 mm built-in depth and usable depth 103–158 mm. Benefit: Provides robust mechanical support and predictable space for components, reducing panel deformation and maintenance needs. Application: Great for heavy-duty control assemblies requiring durable mounting surfaces and flexible depth planning. Feature: Color and finish – light grey (RAL 7035) with plastic covers and 90-degree press-and-turn closure. Benefit: Improves visibility, aesthetics, and field serviceability while delivering corrosion resistance and quick access. Application: Panels exposed to industrial environments benefit from consistent color-coding and easy cover removal. Feature: Compliance and declarations – RoHS, REACH, SCIP, and CE conformance. Benefit: Reduces regulatory risk and ensures supply-chain transparency for serialized assemblies. Application: Critical for industries with strict environmental and safety standards, including automotive and process automation. Feature: Enclosure mounting frame compatibility – WR or EDF. Benefit: Simplifies integration with ABB enclosure families and reduces custom mounting adapters. Application: Streamlines design and procurement for panel builders deploying CombiLine interiors across multiple projects.
