ABB 2CPX041711R9999 Interior Fitting Module - DIN EN 61439
Part Number: 2CPX041711R9999
Quick Summary
ABB 2CPX041711R9999 interior fitting module is designed for modular distribution panels in CombiLine systems. Installers often struggle with limited cabinet depth and awkward mounting arrangements that slow projects. This unit delivers CE conformity, RoHS and REACH declarations, and aligns with DIN EN 61439-2/3 for safe, reliable enclosure performance. By standardizing the mounting plate with stepless adjustability, 48 DIN positions, and a compact 500 mm wide footprint, it enables faster assemblies, minimizes field modifications, and delivers lower total cost of ownership. For engineers and procurement teams, the combination of robust steel construction and ease of integration translates to improved install times and predictable performance across varied cabinet depths.
Product Information
Extended Description

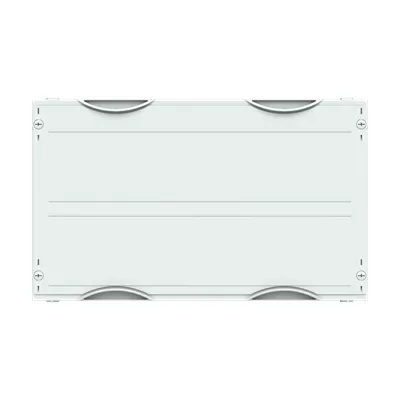

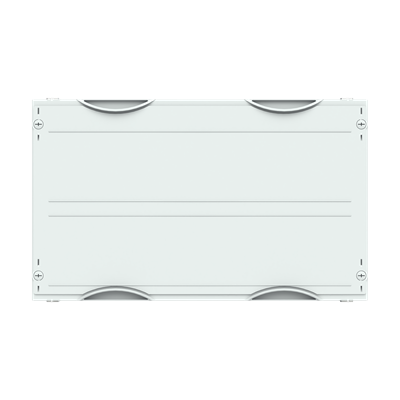

2CPX041711R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Mounting plate, Grid unit 2 GU = 300 mm, panel width 2 = 500 mm, 48 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 103 mm up to 158 mm, usuable width of 438 mm, usuable height of 266 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Mounting Type
Stepless adjustable via mounting bracket
DIN Place Units
48
Meter Boards
0
Module Function
Mounting plate
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e21fc902-baee-40b1-ba33-69765c51a6d6 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
2
Product Net Weight
3.49 kg
Built-In Depth (t2)
120 mm
Thickness
2 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.49 kg
E-Number (Norway)
2444439
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBM...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
