ABB 2CPX041713R9999 Interior Fitting Module - DIN EN 61439-2
Part Number: 2CPX041713R9999
Quick Summary
Interior fitting module ABB 2CPX041713R9999 provides robust mounting for modular distribution panels used in control cabinets. Engineers often struggle with adjustable depth and space constraints, which this unit addresses with stepless mounting and a compact 2 mm sheet steel housing. It is designed to meet key standards and declarations to simplify compliance across sites, including DIN EN 61439-2, CE, RoHS, and REACH, while SCIP listings reinforce sustainability expectations. As part of the CombiLine family, it integrates seamlessly with 450 mm grid units and 36 DIN slots, delivering predictable dimensions and faster project delivery, reducing installation time and total ownership costs for panel builders and integrators.
Product Information
Extended Description

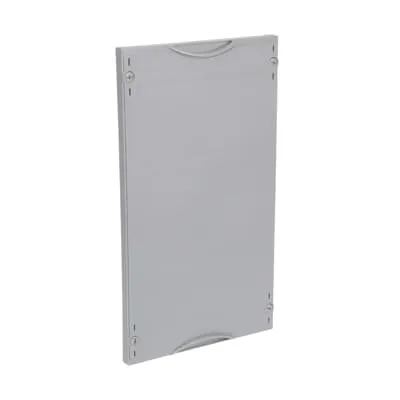

2CPX041713R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Mounting plate, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 103 mm up to 158 mm, usuable width of 188 mm, usuable height of 416 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Mounting Type
Stepless adjustable via mounting bracket
DIN Place Units
36
Meter Boards
0
Module Function
Mounting plate
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e21fc902-baee-40b1-ba33-69765c51a6d6 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
2.45 kg
Built-In Depth (t2)
120 mm
Thickness
2 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.45 kg
E-Number (Norway)
2444440
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBM...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: 2 mm sheet steel housing provides durable cabinet integrity and reliable load support, reducing maintenance cycles and extending service life in harsh production environments; Application: ideal for heavy automation panels in manufacturing lines requiring long-term reliability. Feature → Stepless adjustable mounting bracket enables precise alignment without shims, cutting installation time and ensuring consistent panel gaps; Application: install within cabinets of varying depths (103–158 mm usable depth) for CombiLine modular panels. Feature → 36 DIN place units with a built-in depth of 120 mm and overall footprint 450 × 250 × 200 mm maximizes space efficiency; Application: supports high-density wiring and component organization in compact control enclosures. Feature → Light grey RAL 7035 finish matches standard cabinet aesthetics and reduces visual inventory confusion; Application: suitable for large-scale automation rooms and standardized ABB installations. Feature → Compliance: RoHS and REACH declarations plus DIN EN 61439-2/3 alignment and SCIP listing mitigate regulatory risk; Application: simplifies procurement across global sites and supplier audits. Feature → Compatibility: designed to work with CombiLine interior fitting modules and grid units for predictable interchangeability; Application: accelerates panel builds and reduces change-order impact during modernization projects.
Get a Quick Quote for a ABB 2CPX041713R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041713R9999?
Enquire Now
FAQs
The module is specifically designed for CombiLine interior fitting applications, featuring 36 DIN slots and a 450×250×200 mm footprint. Its stepless mounting bracket supports adjustable depth (103–158 mm) and 120 mm built-in depth, ensuring clean integration with CombiLine grid units and typical control cabinet configurations.
Key specs include 400 V operational voltage, maximum 400 V, enclosure mounting frames WR or EDF, 36 DIN place units, 2 mm sheet steel construction, 450 mm height, 250 mm width, 200 mm depth, and a 120 mm built-in depth. The unit is finished in light grey (RAL 7035) and weighs about 2.45 kg, suitable for 2 mm plate mounting in medium-density panels.
Yes. RoHS is confirmed with EU Directive 2011/65/EU and Amendment 2015/863, REACH declarations state no substances above 0.1 mass percent, and it aligns with DIN EN 61439-2/3 requirements. The product also carries CE declarations and SCIP listing, supporting regulatory compliance across regions.
The stepless mounting bracket allows precise, shim-free alignment across varying cabinet depths, reducing installation time and risk of misalignment. It supports adjustable depth within 103–158 mm and accommodates a 120 mm built-in depth, enabling flexible fitment in differing enclosure designs.
Using this module optimizes space with 36 DIN slots in a compact 450×250 mm footprint, accelerates installation through adjustable mounting, ensures regulatory compliance (DIN EN 61439-2/3, RoHS, REACH, SCIP), and reduces downstream rework by delivering a standardized, reliable mounting solution within ABB’s CombiLine system.
