ABB 2CPX041714R9999 Mounting Plate - EN 61439 Compliance
Part Number: 2CPX041714R9999
Quick Summary
ABB 2CPX041714R9999 Mounting Plate is a robust interior mounting solution for CombiLine modular distribution panels. It solves installation tolerances and depth constraints by offering stepless adjustment and a compact 450x500x200 mm footprint. This mounting plate carries CE declarations, RoHS compliance, and EN 61439-2/3 standards, ensuring safe, compliant cabinet integration. For buyers prioritizing reliable installation and long-term service life, its compatibility with 72 DIN units and 2 mm steel body delivers predictable, repeatable results. Manufacturers benefit from a predictable lead time, simpler mounting, and streamlined maintenance cycles.
Product Information
Extended Description

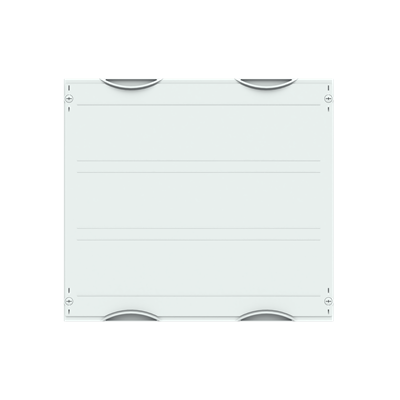

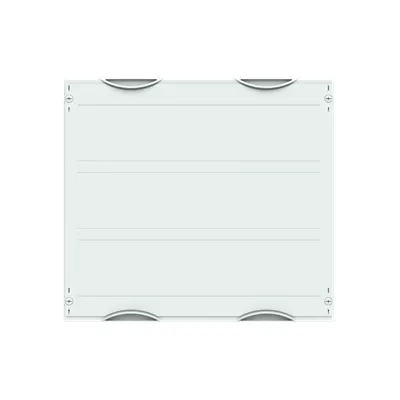

2CPX041714R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Mounting plate, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 103 mm up to 158 mm, usuable width of 438 mm, usuable height of 416 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Mounting Type
Stepless adjustable via mounting bracket
DIN Place Units
72
Meter Boards
0
Module Function
Mounting plate
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e21fc902-baee-40b1-ba33-69765c51a6d6 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
200 mm
Section Width
2
Product Net Weight
4.79 kg
Built-In Depth (t2)
120 mm
Thickness
2 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
4.79 kg
E-Number (Norway)
2444441
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBM...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature Stepless adjustable mounting bracket → Business Impact Simplifies alignment during panel installation, reducing rework and installation time. Application Ideal for interior fitting modules in CombiLine panels. Feature 72 DIN place units → Business Impact Enables high-density mounting and space efficiency, supporting scalable panel layouts. Application Suitable for modular distribution panels with 72 unit capacity. Feature 2 mm sheet steel body → Business Impact Delivers robust mechanical strength with lightweight handling, lowering handling risk and truckload costs. Application Fits industrial cabinet environments requiring durable interior fittings. Feature Built-in depth of 120 mm and usable depth 103–158 mm → Business Impact Provides flexible space planning and compatibility with varying enclosure depths, reducing custom fabrication. Application Compatible with cabinets designed around 200 mm depth. Feature 450 mm width x 500 mm height → Business Impact Ensures standardized footprint for rapid procurement and reduced spare parts variety. Application Streamlines cabinet design for CombiLine systems. Feature CE, RoHS, REACH, and EN 61439 compliance → Business Impact Minimizes regulatory risk and accelerates audit readiness, lowering lifecycle compliance costs. Application Essential for regulated industries and long-term serviceability.
Get a Quick Quote for a ABB 2CPX041714R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041714R9999?
Enquire Now
FAQs
The mounting plate is designed for interior fitting modules within CombiLine panels. Install by aligning the 72 DIN units to the 2 mm steel frame, then use the stepless adjustable mounting bracket to achieve precise depth and level. Ensure the enclosure frame supports WR or EDF mounting where applicable and secure with the provided fasteners for a robust, serviceable installation.
Key specs include 72 DIN place units, 450 mm width by 500 mm height by 200 mm depth, and a built-in depth of 120 mm with a usable 103–158 mm range. It uses 2 mm sheet steel, weighs 4.79 kg, and is rated for up to 400 V. Compliance features include CE, RoHS, REACH, and EN 61439-2/3.
Yes. The product is explicitly described as an interior fitting module for CombiLine modular distribution panels, providing a compact, adjustable platform that supports high DIN-rail unit density within a 200 mm cabinet depth, while maintaining structural integrity and serviceability.
It complies with EN 61439-2/3, carries CE declarations, and meets RoHS and REACH requirements. These certifications ensure electrical safety, environmental responsibility, and regulatory alignment, reducing risk during audits and enabling compliant deployment across regulated facilities.
The stepless mounting bracket allows easier alignment, reducing commissioning time and rework. The standard footprint and 72 DIN capacity enable scalable designs, lowering spare parts and inventory complexity, while EN 61439 compliance minimizes compliance-related downtime and accelerates project timelines.
