ABB 2CPX041717R9999 Mounting Plate - Interior Fitting Module DIN EN 61439-3
Part Number: 2CPX041717R9999
Quick Summary
Mounting Plate enables compact interior fitting for ABB CombiLine distribution panels in 600x500 mm cabinets. Engineers often struggle with misalignment and time-consuming assembly in tight cabinet spaces. This solution carries CE conformity and RoHS/REACH declarations, supported by DIN EN 61439-3/61439-2 standards, ensuring safe, compliant installations. With stepless adjustable mounting brackets and 2 mm sheet steel construction, it delivers reliable alignment and rugged support for heavy loads. From a business perspective, the design reduces installation time, minimizes cabinet rework, and simplifies future upgrades while maintaining a clean, professional appearance. Its 96 DIN place units, 600x500 mm footprint, and plug-in cover options make it a scalable choice for evolving automation layouts, especially in process and machine automation.
Product Information
Extended Description

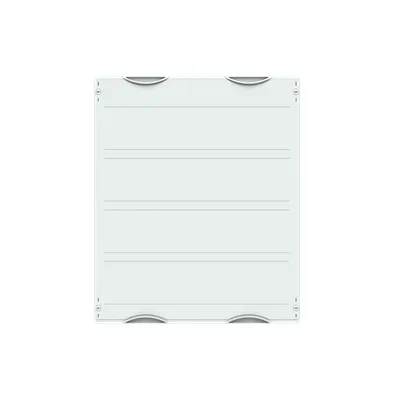

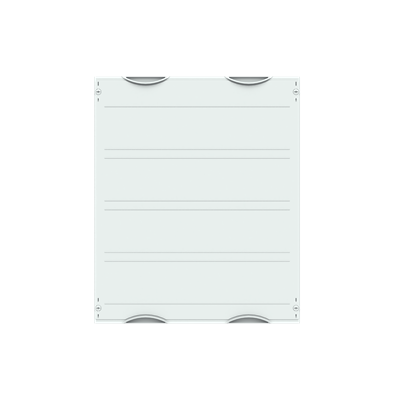

2CPX041717R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Mounting plate, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 103 mm up to 158 mm, usuable width of 438 mm, usuable height of 566 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
Mounting Type
Stepless adjustable via mounting bracket
DIN Place Units
96
Meter Boards
0
Module Function
Mounting plate
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e21fc902-baee-40b1-ba33-69765c51a6d6 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
200 mm
Section Width
2
Product Net Weight
6.48 kg
Built-In Depth (t2)
120 mm
Thickness
2 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
6.48 kg
E-Number (Norway)
2444443
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBM...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: 96 DIN place units across a 600 mm width and 500 mm depth provide compact but dense cabinet organization, enabling higher system density and better space utilization in control panels; this translates to lower cabinet footprint per function and easier future expansion in process automation. Feature → Stepless adjustable mounting bracket → Precision installation → The stepless adjustment accommodates variable enclosure depths, reduces shim work, and ensures precise alignment of modules within CombiLine interior fittings, saving commissioning time on machine builds. Feature → 2 mm sheet steel construction → Rugged reliability → The robust sheet steel frame supports heavier components and vibrations common in automation environments, prolonging life in harsh industrial settings. Feature → RoHS/REACH compliance and CE declarations → Regulatory confidence → It meets EU RoHS and REACH requirements and CE conformity, mitigating compliance risk during audits and ensuring market-ready installations in European facilities. Feature → Build and finish details → Operational ease → The light grey finish and 90-degree press-and-turn closures provide easy access, clean maintenance, and clear visibility of cable and module layout, supporting quick fault finding and routine servicing in control rooms.
