ABB 2CPX041719R9999 Mounting Plate - 60 DIN Places, CE
Part Number: 2CPX041719R9999
Quick Summary
ABB 2CPX041719R9999 Mounting Plate provides a flexible mounting surface for CombiLine interior fitting modules in modular distribution panels. Engineers often contend with crowded enclosures, limited access, and the need for future expansion, which can slow commissioning. The design aligns with CE declarations and DIN EN 61439-2/3 standards, while RoHS and REACH declarations support compliant sourcing. This mounting plate integrates with ABB CombiLine systems and supports straightforward installation, reduced assembly time, and scalable panel layouts for growing electrical distribution needs.
Product Information
Extended Description

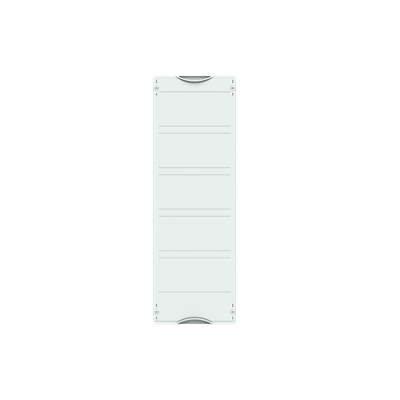

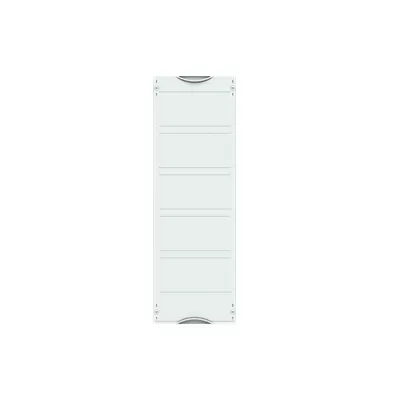

2CPX041719R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Mounting plate, Grid unit 5 GU = 750 mm, panel width 1 = 250 mm, 60 Space units, mounting plates of sheet steel 2 mm, Stepless adjustable via mounting bracket, usuable depth of 103 mm up to 158 mm, usuable width of 188 mm, usuable height of 716 mm, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
1
Mounting Type
Stepless adjustable via mounting bracket
DIN Place Units
60
Meter Boards
0
Module Function
Mounting plate
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
e21fc902-baee-40b1-ba33-69765c51a6d6 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
750 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
3.59 kg
Built-In Depth (t2)
120 mm
Thickness
2 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.59 kg
E-Number (Norway)
2444444
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBM...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001893 - Distributor assembly for device surface mounting
ETIM 9
EC001893 - Distributor assembly for device surface mounting
eClass
V11.0 : 27400608
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature 60 DIN place units and 250x750 mm footprint enables standardized, scalable panel architectures, driving faster assembly and reduced field rewiring. Business Impact: accelerates time-to-operational, lowers commissioning risk, and improves space planning in control cabinets. Application: suitable for large modular distributions where 60 DIN slots are required and a precise footprint is mandated for components coexistence. Feature Stepless adjustable mounting bracket provides flexible positioning and mounting tolerance, minimizing alignment errors in dense assemblies. Business Impact: less rework, fewer hardware changes, and easier cable management. Application: installers adjust to 103 mm to 158 mm usable depth to fit different module depths. Feature 2 mm sheet steel construction offers rugged durability with a modest weight of 3.59 kg, enhancing rigidity without complicating handling. Business Impact: robust protection for mounted devices and reduced risk of deformation during installation. Application: ideal in environments requiring reliable support and long service life. Feature Compliance with DIN EN 61439-2/3, RoHS, REACH and CE declarations improves regulatory confidence and market acceptance. Business Impact: simplifies procurement audits and ensures regulatory alignment for panel projects. Application: suitable for industrial cabinets subject to European standards. Feature WR or EDF enclosure mounting frame compatibility simplifies integration. Business Impact: reduces mounting complexity and ensures correct fit with common ABB enclosure families. Application: streamlines installation in both new builds and retrofits.
Get a Quick Quote for a ABB 2CPX041719R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041719R9999?
Enquire Now
FAQs
Installation begins with confirming WR or EDF enclosure compatibility, then aligning the 60 DIN slots to the cabinet grid. The stepless adjustable mounting bracket allows precise positioning, while the 2 mm steel plate provides rigidity. Ensure the panel depth is within 120 mm built-in depth and secure the mounting with standard fasteners to minimize vibration and maintenance needs.
Yes. The enclosure mounting frame specification for this plate lists WR or EDF as compatible options, enabling straightforward integration with common ABB modular enclosures and simplifying retrofit projects without custom fabrication.
Key specs include Rated Operational Voltage up to 400 V, Operational Voltage of 400 V, a footprint of 250 mm by 750 mm, depth of 200 mm, and 60 DIN place units. The weight is 3.59 kg, with a built-in depth of 120 mm and sheet steel construction of 2 mm.
Yes. It carries EU Declaration of Conformity for the Distribution Panel System CombiLine N, RoHS compliance per EU Directives 2011/65/EU and 2015/863, and REACH declarations, ensuring regulatory alignment for European deployments.
Benefits include faster panel assembly due to standardized 60-DIN footprint, reduced field modifications with stepless mounting, easier future expansions within the 750 mm height, and lower lifecycle costs through robust 2 mm steel construction and regulatory compliance that minimizes rework and audit findings.
