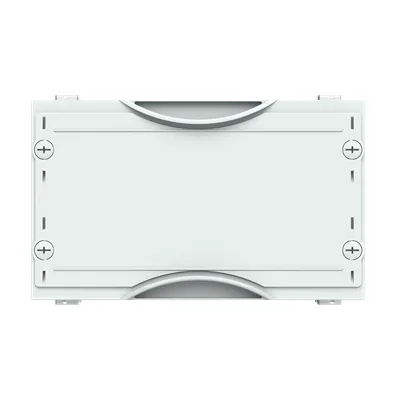

ABB 2CPX041722R9999 Touch Guard Interior Fitting Module - DIN EN 61439
Part Number: 2CPX041722R9999
Quick Summary
ABB 2CPX041722R9999 Touch Guard interior fitting module secures panel access in modular distribution cabinets. Engineers often struggle with mounting fit, space optimization, and ensuring regulatory compliance in compact switchgear enclosures. It provides CE conformity and DIN EN 61439-3/2 compliance, RoHS and REACH declarations for global markets. Designed for the CombiLine system with 12 DIN place units, it streamlines installation and supports long-term serviceability. By using a lightweight plastic cover and a 90-degree press-and-turn closure, it reduces assembly time and enhances cabinet aesthetics. Operational reliability is further reinforced by defined enclosure depth of 120 mm, supporting consistent spacing and thermal management. With RoHS and REACH alignment, it helps meet supplier sustainability goals while simplifying compliance audits.
Product Information
Extended Description
2CPX041722R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for touch guard, Grid unit 1 GU = 150 mm, panel width 1 = 250 mm, 12 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
12
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
150 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
0.3 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.3 kg
E-Number (Norway)
2444428
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBB...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
The 12 DIN place units provide high-density wiring and control space, enabling compact modular distribution panels and reducing cabinet footprint, which lowers enclosure costs and installation time in critical automation projects. This translates to faster commissioning and easier future reconfiguration in industrial control cabinets. The 250 mm width and 150 mm height align with standard CombiLine grid layouts, improving compatibility with existing panel components and enabling quicker retrofits. Rated operational voltage of up to 400 V ensures safe operation for typical industrial power distributions, while the enclosure depth of 120 mm supports reliable heat dissipation and predictable thermal performance. The 90-degree press-and-turn closure speeds assembly and simplifies service access, reducing maintenance labor. The light grey cover and grey panel aesthetics minimize visible wear in harsh environments, supporting long-term reliability and minimal lifecycle costs. RoHS and REACH compliance, along with CE conformity, reduce regulatory risk and streamline supplier audits, making this interior fitting module a dependable choice for global deployment. The WR or EDF enclosure mounting frames offer flexible integration with existing infrastructure and simplify installation in new or retrofit projects. The touch guard function enhances operator safety by reducing direct contact with live components, a critical factor in high-density control panels. Built for 12 DIN units, the module supports scalable control architectures while maintaining orderly cable management and accessibility.
Get a Quick Quote for a ABB 2CPX041722R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041722R9999?
Enquire Now
FAQs
Install within a suitable CombiLine enclosure using WR or EDF mounting frames. Align the 12 DIN spaces with the 1 GU = 150 mm grid and secure the 90-degree press-and-turn closure for quick, vibration-resistant mounting. Verify the 120 mm built-in depth fits your cabinet; connect wiring in an organized, accessible cable tray for easy maintenance.
Rated operational voltage is maximum 400 V with continuous operation at 400 V. The module supports 12 DIN place units across a 250 mm width and 150 mm height, with a built-in depth of 120 mm. Weight is approximately 0.3 kg, enabling lightweight installation in modular panels without compromising safety.
Yes. It is designed for CombiLine systems and grid units, with 12 DIN spaces matching common 1 GU = 150 mm spacing. The enclosure mounting frame options WR or EDF provide flexible integration, allowing straightforward retrofit or new-build installations within existing CombiLine configurations.
The module is CE conformant and complies with DIN EN 61439-2 and DIN EN 61439-3 standards. It carries RoHS and REACH declarations and is declared for global markets. WEEE categorization places it outside the main WEEE scope, simplifying disposal considerations in many regions.
The touch guard, 90-degree closure, and durable plastic cover simplify routine inspection and service access, reducing downtime. The compact 12 DIN space design improves cable management and future reconfiguration efficiency, contributing to lower total cost of ownership in industrial control cabinets and large-scale distribution panels.
