ABB 2CPX041724R9999 Touch Guard - DIN EN 61439-3
Part Number: 2CPX041724R9999
Quick Summary
2CPX041724R9999 touch guard module protects personnel and equipment in ABB CombiLine distribution panels for safer cabinet access. Engineers often struggle with safe-entry procedures, crowded enclosures, and regulator-limited downtime during maintenance. This solution aligns with CE conformity, RoHS, and REACH commitments while supporting DIN EN 61439-3 compliance. By delivering a 36 DIN slot interior fitting module with a 750 mm width and a 120 mm built-in depth, it enables scalable layouts and faster panel upgrades. For procurement teams, it means predictable sourcing, standard interfaces, and reduced change-orders, while integrators gain a plug-and-play fit for 400 V systems in industrial environments.
Product Information
Extended Description

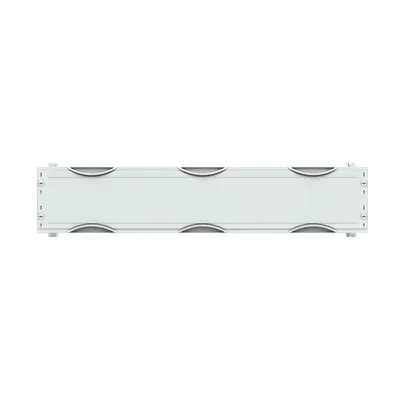

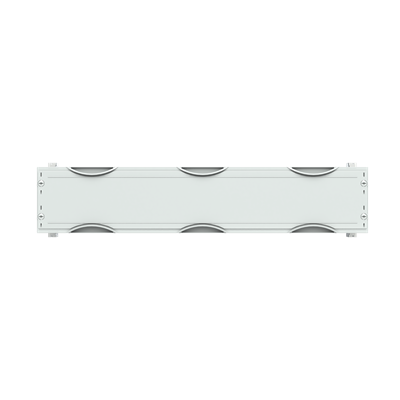

2CPX041724R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for touch guard, Grid unit 1 GU = 150 mm, panel width 3 = 750 mm, 36 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
0000
DIN Place Units
36
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
150 mm
Product Net Depth / Length
120 mm
Section Width
3
Product Net Weight
0.85 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.85 kg
E-Number (Norway)
2407828
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBB...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
36 DIN place units provide high-density organization within a single cabinet, enabling more circuits per frame. This translates to lower panel footprints, reduced wiring complexity, and faster commissioning when integrated with ABB CombiLine systems. Ideal for panel builders seeking scalable distribution without expanding footprint in 750 mm wide enclosures. Rated for a maximum 400 V operation ensures compatibility with typical industrial power distribution. The result is safer operation, fewer voltage-related concerns, and easier compliance with DIN EN 61439-3 requirements during design and testing. Use in 400 V control panels in manufacturing lines and machine controls. Enclosure mounting frame WR or EDF provides flexible mounting options across ABB CombiLine installations. This delivers installation time savings and reduces misalignment or mounting errors, improving panel integrity. Suitable for interior-fitting layouts in both new builds and retrofits. RoHS and REACH declarations ensure regulatory compliance and sustainability. This minimizes risk during supplier audits and simplifies procurement across regulated markets. For engineers, it means easier vendor qualification and fewer parts substitutions during project rollouts. Detailed dimensions and weight align with standard cabinet spaces—750 mm width, 150 mm height, 120 mm depth, and a light-grey profile.
Get a Quick Quote for a ABB 2CPX041724R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041724R9999?
Enquire Now
FAQs
Begin with the enclosure frame WR or EDF and ensure the cabinet depth accommodates 120 mm built-in depth. Mount the interior fitting module to align with the 36 DIN slots, then secure the 90-degree closure. Connect field wiring per 400 V system guidelines and verify the 750 mm width fits the cabinet opening. The MBB mounting instructions provide step-by-step guidance for a clean, compliant installation.
Yes. The unit is rated for a maximum operational voltage of 400 V and is designed for 400 V control panels. It complies with DIN EN 61439-3 requirements, and its RoHS/REACH declarations support regulatory alignment. This makes it a reliable choice for industrial automation applications and distributed power in factory environments.
The module carries CE conformity with the EU Declaration of Conformity for Distribution Panel System CombiLine N. RoHS information aligns with EU Directive 2011/65/EU and 2015/863, and REACH declarations are provided. WEEE categorization indicates the product is not within WEEE scope. Additionally, DIN EN 61439-3 and DIN EN 61439-2 standards govern its mechanical and electrical safety in distribution panels.
The 36 DIN slots support high-density layouts, reducing enclosure footprint and wiring complexity. The enclosure mounting options WR or EDF deliver flexible integration across ABB CombiLine setups, while the 750 mm width and 150 mm height fit standard cabinet footprints. Color and material choices ensure visual consistency in grey tones, aiding both aesthetic and functional integration in new builds or retrofit projects.
Ideal for industrial automation, manufacturing lines, and energy distribution panels requiring safe access with touch protection. It suits CombiLine interior fittings in 400 V systems, enabling scalable, compliant panel design. Use cases include machine control cabinets, distribution boards in process industries, and retrofit projects where DIN rail space is at a premium and 36 DIN capacity is advantageous.
