ABB 2CPX041725R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX041725R9999
Quick Summary
ABB 2CPX041725R9999 interior fitting module is designed for CombiLine distribution panels to organize 24 DIN space. Engineers often struggle with modularity, quick access, and secure closure in compact cabinet designs. Key certifications include CE conformity, RoHS compliance under EU Directive 2011/65/EU with Amendment 2015/863, and DIN EN 61439-3 standard. By aligning with WR or EDF enclosure mounting frames, this module enables reliable installation, easy future expansion, and consistent panel performance. With REACH declarations and ETIM classifications, it supports safer procurement and faster project readiness, reducing risk and total cost of ownership. It also integrates touch guard features to enhance operator safety in everyday use.
Product Information
Extended Description

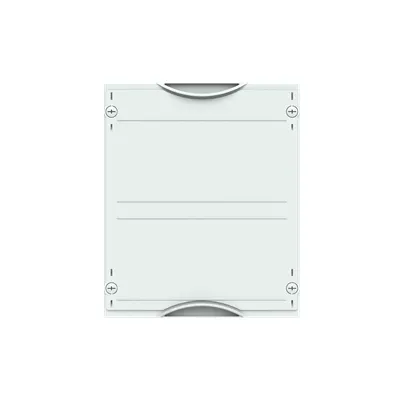

2CPX041725R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for touch guard, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
0.55 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.55 kg
E-Number (Norway)
2444430
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBB...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
24 DIN place units and a 250 by 300 by 120 mm footprint are optimized for modular panel design. Business impact: design teams gain predictable layouts, easier cable routing, and fewer reworks during wiring, accelerating project timelines. Application: ideal for CombiLine interior fitting modules and other 24-slot distribution cabinets in process automation and machine building. Feature: Touch guard module with a 90-degree press-and-turn closure and a closed cover delivers enhanced operator safety and environmental sealing. Business impact: reduces risk of accidental contact with live parts and minimizes ingress of dust, improving long-term reliability and maintenance intervals. Application: suitable for high-traffic control cabinets where safety, accessibility, and tidy front-ends matter. Feature: Lightweight plastic construction with light grey enclosure and grey cover, matching RAL 7035 aesthetics, while ROHS/REACH declarations cover material compliance. Business impact: lowers installation weight, simplifies handling, and reduces support and shipping costs without compromising rigidity. Application: broadly compatible with standard factory floors and wall-mount enclosures in automation environments. Feature: Enclosure mounting frame compatibility with WR or EDF frames supports flexible installations and scalable retrofits. Business impact: enables quick integration with existing cabinets, minimizes custom fabrication, and shortens commissioning times. Application: works across ABB distribution systems and third-party enclosures that conform to DIN 61439-3 requirements. Feature: Documented compliance with DIN EN 61439-3 and -2, along with RoHS, REACH, and WEEE status, plus ETIM 8/9 classifications. Business impact: simplifies audits and procurement, improves data quality in ERP catalogs, and strengthens supplier confidence. Application: ideal for regulated industries such as energy, manufacturing automation, and process industries that demand traceable component data.
Get a Quick Quote for a ABB 2CPX041725R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041725R9999?
Enquire Now
FAQs
Start by confirming the cabinet depth of 120 mm and the 250 × 300 mm footprint. Attach the WR or EDF mounting frame first, then align the interior fitting module so the 24 DIN spaces line up with the panel front. Secure using standard mounting hardware per the MBB mounting instructions, ensuring a solid front-face seal and proper clearance for the touch guard operation.
The module supports a maximum rated operational voltage of 400 V, with a nominal voltage of 400 V. This requires appropriately rated busbars and insulation in the surrounding enclosure. Design considerations include safe front-face access via the touch guard, adequate clearance for 90-degree closures, and compliance with DIN EN 61439-3/2 for safety and reliability in power distribution cabinets.
Yes. The 24 DIN place unit configuration is specifically intended for CombiLine interior fitting applications. Its 250 × 300 × 120 mm footprint, 0.55 kg weight, and 24-space arrangement support efficient wiring, clean front-ends, and scalable expansion within CombiLine-based panel builds, while maintaining safe operation through the touch guard feature.
The module adheres to DIN EN 61439-3 and DIN EN 61439-2 standards, with EU CE conformity, RoHS compliance under directive 2011/65/EU and amendment 2015/863, and REACH declarations. It also notes WEEE status and ETIM classifications (EC001892 for distributors with protection against contact), ensuring regulatory alignment and accurate data for procurement systems.
The lightweight 0.55 kg design reduces handling and shipping costs, while the closed touch guard reduces wear and operator risk, lowering maintenance calls. Its compatibility with WR/EDF frames shortens installation time, and adherence to EN 61439-series standards minimizes rework and audit findings, delivering faster project completion and lower total cost of ownership in regulated automation environments.
