ABB 2CPX041726R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX041726R9999
Quick Summary
ABB 2CPX041726R9999 is an interior fitting module for touch guard distribution panels in ABB CombiLine systems. Operators often face space constraints and safety risks when expanding modular panels, and this unit addresses both by delivering 48 DIN place units in a compact 500 mm width and 300 mm height with a built-in 120 mm depth. The product carries CE conformity to DIN EN 61439-3, RoHS compliance, and REACH declarations, ensuring regulatory alignment across European installations. This combination supports faster, predictable assembly, easier maintenance, and lower total cost of ownership, while remaining fully compatible with existing CombiLine configurations and plans for scalable expansion in modular electrical layouts. Engineers also benefit from standardized dimensions and a design that reduces field rework.
Product Information
Extended Description

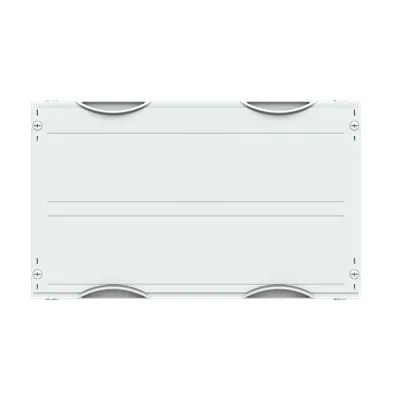

2CPX041726R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for touch guard, Grid unit 2 GU = 300 mm, panel width 2 = 500 mm, 48 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
48
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
2
Product Net Weight
1.29 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.29 kg
E-Number (Norway)
2444431
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBB...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → The 48 DIN place units provide high-density circuit distribution within a compact footprint. Business Impact → This reduces cabinet width and wiring complexity, accelerating panel builds and trimming installation labor costs. Application → In ABB CombiLine projects, it enables scalable layouts in 500 mm wide by 300 mm high enclosures. Feature → Touch guard and 90-degree closure provide safe, hands-off servicing. Business Impact → Operators experience reduced risk of accidental contact and quicker door operation, improving uptime. Application → Suitable for panels that require frequent access while preserving enclosure integrity in harsh manufacturing environments. Feature → Built-in depth of 120 mm with 500x300 footprint ensures predictable cabinet planning. Business Impact → Enables standardized installation across multiple lines, decreasing custom-fit work and inventory variance. Application → Works with 2 GU grids and CombiLine's modular approach to enclosure design. Feature → Enclosure mounting frame options WR or EDF deliver mounting flexibility. Business Impact → Allows installation on existing frames, simplifying retrofits and field upgrades. Application → Compatible with standard ABB distribution frameworks and new builds alike. Feature → RoHS and REACH compliance alongside CE declarations guarantee regulatory alignment. Business Impact → Reduces compliance risk, eases procurement, and supports European market entries. Application → Suitable for European OEMs and integrators designing safe, sustainable electrical cabinets.
