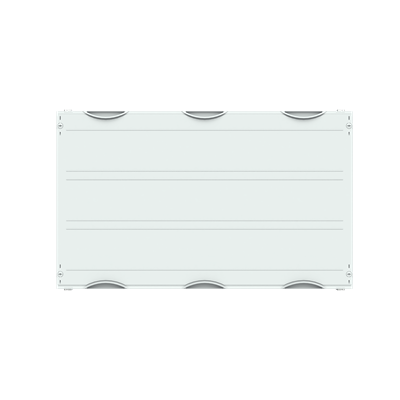

ABB 2CPX041730R9999 Touch guard module - DIN EN 61439-3
Part Number: 2CPX041730R9999
Quick Summary
ABB 2CPX041730R9999 touch guard interior fitting module enables safe, organized panel assembly in CombiLine systems. Engineers often struggle with cramped cabinets, limited DIN-places, and difficult closures, which slowdowns during commissioning. This module provides 108 DIN place units, a 750 mm width, 450 mm height, and a 120 mm built-in depth, plus a 90-degree press-and-turn closure for rapid access. It carries CE declarations and complies with DIN EN 61439-3, RoHS, and REACH, reducing regulatory risk. By standardizing interior fitments, it streamlines procurement and installation, enabling faster changeouts, easier diagnostics, and consistent maintenance across multi-bay panels. In short, it delivers safer, more reliable panel environments with predictable lifecycle costs for panel builders and integrators.
Product Information
Extended Description
2CPX041730R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for touch guard, Grid unit 3 GU = 450 mm, panel width 3 = 750 mm, 108 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
108
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
450 mm
Product Net Depth / Length
120 mm
Section Width
3
Product Net Weight
2.56 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.56 kg
E-Number (Norway)
2407830
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBB...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
108 DIN place units are built into the module, delivering dense yet accessible space. Business impact: enables high panel density, cleaner cable routes, and future expansion without cabinet redesign. Application: fits CombiLine modular distribution panels where space efficiency and serviceability are essential. The 90-degree press-and-turn closure reduces installation time and minimizes the risk of improper closures. Business impact: faster commissioning, safer cabinet access, and fewer field adjustments. Application: ideal for high-volume assembly lines and service cabinets. Plastic construction with a light grey body and grey cover offers durability with a professional cabinet appearance. Business impact: lightweight handling, easy cleaning, and consistent aesthetics across installations. Application: suitable for control cabinets requiring robust interior fittings and straightforward maintenance. RoHS and REACH compliance, along with CE declarations, reduce regulatory risk. Business impact: simplified purchasing and risk mitigation in EU projects. Application: essential for European panel builds and compliant equipment rollout. Enclosure Mounting Frame WR or EDF enables straightforward integration. Business impact: compatible with existing mounting schemes, reducing retrofit costs. Application: broad compatibility for CombiLine installations. The 108-DIN arrangement, 3 GU grid unit, and 120 mm built-in depth support predictable planning. Business impact: improved inventory planning and installation predictability. Application: procured as standard pack for modular distribution cabinets.
Get a Quick Quote for a ABB 2CPX041730R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041730R9999?
Enquire Now
FAQs
The 2CPX041730R9999 is designed for CombiLine modular distribution panels as an interior fitting module with a 750 mm width, 450 mm height, and 120 mm built-in depth. It supports WR or EDF enclosure mounting frames and a 108-DIN layout, making it suitable for standard, modular control cabinets in industrial environments.
Key specs include rated operational voltage up to 400 V, 108 DIN place units, grid unit 3 GU with a 750 mm width and 450 mm height, built-in depth of 120 mm, 90-degree closure, and light grey cover. It is RoHS and REACH compliant and aligns with DIN EN 61439-3 requirements for interior fittings.
Yes. It is designed specifically as an interior fitting module for touch guard systems in European panel enclosures, with CE conformity and compliance to DIN EN 61439-3. RoHS and REACH declarations further support regulatory requirements in EU projects.
The module carries a CE Declaration of Conformity, RoHS compliance (Directive 2011/65/EU and amendment 2015/863), REACH information, and DIN EN 61439-3/2 standards. ETIM 8/9 classification EC001892 and eClass 27400615 also apply, with WEEE status indicating the product is not in scope. These facilitate supplier qualification and compliance audits.
With 108 DIN places and a compact 120 mm built-in depth, the module enables dense, scalable panel designs, reducing cabinet footprint and labor during installation. Its CE/RoHS/REACH compliance lowers risk and rework, while the standard MBB mounting path and 90-degree closure speed up commissioning and maintenance, delivering measurable lifecycle cost savings for panel builders.
