ABB 2CPX041736R9999 Touch Guard - DIN EN 61439-3
Part Number: 2CPX041736R9999
Quick Summary
ABB 2CPX041736R9999 is a touch guard module for interior fitting in modular distribution panels. Many installers struggle with limited cabinet space and mounting compatibility in dense control rooms. It complies with CE conformity and DIN EN 61439-3, with RoHS and REACH declarations to ease regulatory audits. Designed for 750 mm square layouts with 180 DIN places and a 120 mm built-in depth, it offers predictable fitment and faster deployment, delivering value across panel builders and end users. With a light grey enclosure and closed cover, it helps keep access safe and reduces incidental contact. In practice, using this module can lower assembly time, improve safety, and support scalable, standards-compliant panel systems.
Product Information
Extended Description

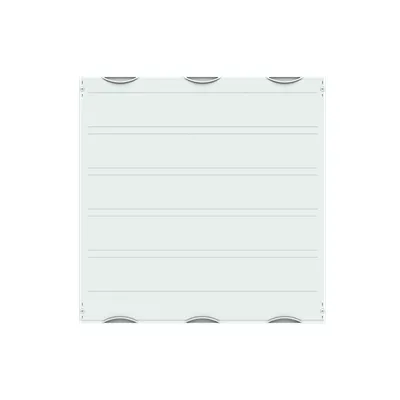

2CPX041736R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for touch guard, Grid unit 5 GU = 750 mm, panel width 3 = 750 mm, 180 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 120 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
1
DIN Place Units
180
Meter Boards
0
Module Function
touch guard
Color
Light grey
Cover Color
Grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
750 mm
Product Net Depth / Length
120 mm
Section Width
3
Product Net Weight
3.544 kg
Built-In Depth (t2)
120 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.69 kg
E-Number (Norway)
2407832
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBB...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001892 - Distributor assembly with protection against contact
ETIM 9
EC001892 - Distributor assembly with protection against contact
eClass
V11.0 : 27400615
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Interior fitting module for CombiLine with 180 DIN place units and a 750 x 750 mm footprint. Benefit: Maximizes cabinet density while keeping layout predictable, enabling quicker panel design and higher throughput for panel builders and system integrators. Application: Ideal for modular distribution panels in industrial control cabinets where footprint efficiency matters. Feature: Touch guard with closed cover and 90-degree closure design. Benefit: Reduces risk of accidental contact and enhances operator safety, supporting safer maintenance cycles and compliance with safety standards. Application: Suitable for live-control enclosures in manufacturing cells and process lines where rapid access control is required. Feature: Flexible mounting frame WR or EDF and built-in depth of 120 mm. Benefit: Facilitates installation across a range of ABB CombiLine configurations, shortening commissioning time and reducing field engineering effort. Application: Great for retrofit projects and new builds in space-constrained switchgear rooms. Feature: RoHS and REACH compliance plus EU Declarations of Conformity. Benefit: Lowers regulatory risk, simplifies audits and sourcing, and supports responsible procurement. Application: Essential for certified panel systems in automotive, food & beverage, and packaging lines. Feature: DIN EN 61439-3/2 compatibility and ETIM/eClass classifications. Benefit: Ensures interoperable, standards-based performance with reliable component sourcing and easy cross-referencing. Application: Suitable for regulated environments requiring traceable part data and consistent installation practices.
Get a Quick Quote for a ABB 2CPX041736R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041736R9999?
Enquire Now
FAQs
Start by aligning the interior fitting module to the 180 DIN place units within the CombiLine panel. Use the WR or EDF enclosure mounting frame to secure the unit, ensuring the 750 mm x 750 mm footprint seats flush. The 120 mm built-in depth fits standard cabinet depths, and the 90-degree closure enables secure, quick access for maintenance.
The module is rated for a maximum operational voltage of 400 V, with a nominal operating voltage of 400 V. It is designed for interior fitting inside modular panels and supports 180 DIN placements, which helps accommodate extensive control circuits while maintaining safe clearances and compliance with DIN EN 61439-3.
Industries with dense control cabinets and high-capacity distribution panels benefit most, including automotive, process automation, packaging, and manufacturing facilities. The 180 DIN units and modular design make it ideal for scalable panel systems in environments that require reliable touch protection and regulatory compliance.
The module complies with CE conformity and DIN EN 61439-3/2 standards. It includes RoHS and REACH declarations, EU Declarations of Conformity, and references to WEEE considerations, ensuring regulatory alignment for European markets and responsible material sourcing.
The closed, safeguarded touch guard reduces maintenance-related safety incidents and simplifies access control during inspections. Its standardized DIN placement and robust compliance support faster installation, lower field engineering costs, and improved lifecycle reliability, yielding lower total cost of ownership for panel builders and end users.
