ABB 2CPX041746R9999 Interior Fitting Module - DIN EN 61439-2
Part Number: 2CPX041746R9999
Quick Summary
ABB 2CPX041746R9999 is an interior fitting module for N/PE busbar systems in CombiLine panels. Engineers face space constraints and mounting misalignment in compact distribution enclosures, which can delay commissioning. This module adheres to DIN EN 61439-2/3 and CE marking, with RoHS and REACH compliance that reassure procurement and compliance teams. Its stepless mounting bracket and horizontal busbar alignment simplify installation, while the 24 DIN places and 2-pole, 440 A rating support scalable panel designs. By standardizing access to N/PE busbars and terminals, it reduces field adjustments and inventory variety, delivering faster wiring, safer operation, and lower lifecycle costs for modular power distribution in industrial environments.
Product Information
Extended Description

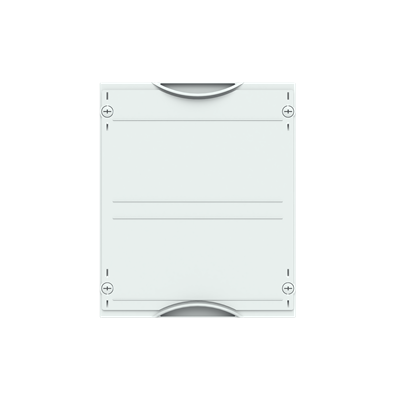

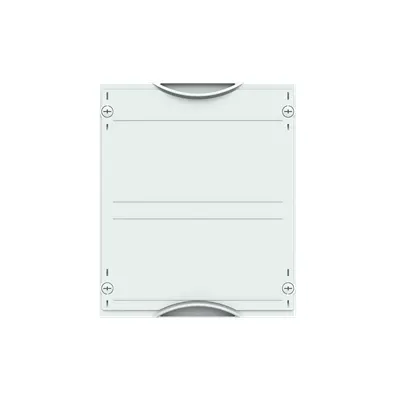

2CPX041746R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, Stepless adjustable via mounting bracket, usuable depth of 90 mm up to 145 mm, usuable width of 188 mm, for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX518, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
440 A
Rated Service Short-Circuit Breaking Capacity (Ics)
20 kA
Busbar Position
Center Central
Number of Poles
2P
Number of Rows
1
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Mounting Type
Stepless adjustable via mounting bracket
Accessories Available
Yes
DIN Place Units
24
Meter Boards
0
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
0.97 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.97 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBN...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Stepless adjustable mounting bracket enables precise position of the panel module to fit a range of cabinet depths without custom fabrication; this reduces field modification time and likelihood of misalignment, delivering faster instrument alignment and safer enclosure integration. With 24 DIN place units and center-central 2P busbar alignment, technicians can organize wiring neatly and accommodate two copper busbars when needed, supporting scalable architectures in CombiLine panels and simplifying labeling and maintenance. Rated current of 440 A and a short-circuit rating (Ics) of 20 kA at 400 V provide reliable protection for heavy drive loads and distribution circuits, while maintaining thermal performance under peak demand. The enclosure design uses plastic covers in a light grey finish, complying with RoHS and REACH requirements, reducing regulatory risk and improving field safety. The module is designed for easy installation and maintenance within modular distribution panels; busbar holders ZX518 are supported and busbars can be ordered separately, which reduces stock variety and speeds up commissioning in plant environments. This combination delivers predictable install times, improved safety margins, and lower total cost of ownership for industrial electrical cabinets.
