ABB 2CPX041752R9999 Interior Fitting Module - DIN EN 61439
Part Number: 2CPX041752R9999
Quick Summary
ABB 2CPX041752R9999 Interior Fitting Module is a modular distribution panel component designed for N/PE busbars and terminals in control cabinets. It provides a flexible, space-efficient solution for high-current distribution where footprint is at a premium. This unit aligns with CE conformity, DIN EN 61439-2/3 standards, and RoHS/REACH declarations, giving you regulatory confidence for harsh industrial environments. The stepless adjustable mounting and horizontal busbar alignment reduce installation time and rework, while the 36 DIN slots enable scalable capacity. In practice, this supports ABB CombiLine configurations and other modular panel systems, delivering reliable current distribution, easier maintenance, and long-term cost savings in automation and power management applications.
Product Information
Extended Description

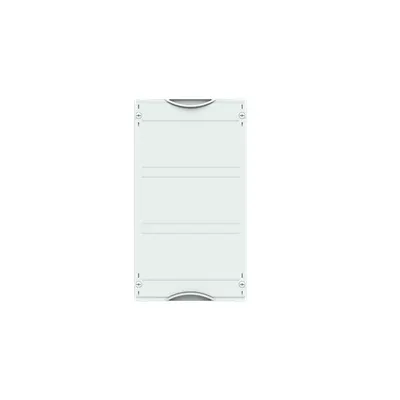

2CPX041752R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, Stepless adjustable via mounting bracket, usuable depth of 90 mm up to 145 mm, usuable width of 188 mm, for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX518, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 440 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
440 A
Rated Service Short-Circuit Breaking Capacity (Ics)
20 kA
Busbar Position
Center Central
Number of Poles
2P
Number of Rows
2
Enclosure Mounting Frame
WR or EDF
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Mounting Type
Stepless adjustable via mounting bracket
Accessories Available
Yes
DIN Place Units
36
Meter Boards
0
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
450 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
1.45 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.45 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBN...
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: N/PE busbar and terminals integrated into a compact interior module. Benefit: Safer, centralized power distribution within standard control cabinets, reducing wiring complexity and enabling faster fault isolation in automation projects. Application: Ideal for control panels in manufacturing lines and process automation where space is at a premium. Feature: 400 V operating voltage and 440 A rated current with 36 DIN slots across 2P and 2 rows. Benefit: Supports high-load applications with structured, scalable space for busbars and auxiliary terminals, enabling reliable power delivery and future expansion. Application: Large industrial cabinets and substations requiring robust current handling. Feature: Stepless adjustable mounting bracket (90–145 mm) with precise busbar alignment using ZX518 holders. Benefit: Simplifies commissioning, reduces rework, and ensures consistent thermal management and service access. Application: On-site installations where cabinet depth varies. Feature: Horizontal busbar alignment and dedicated busbar holders. Benefit: Improves installation accuracy, minimizes stray inductance, and allows clean cabling layouts for maintenance. Application: Modular panel builds with tight spacing. Feature: Enclosure frame options WR or EDF with 90-degree press-and-turn closure in light grey (RAL 7035). Benefit: Robust protection against dust and incidental contact, with easy field servicing. Application: Enclosures in industrial environments requiring reliable ingress protection and repeatable assembly. Feature: Compliance suite including RoHS, REACH, and EU CE declarations, plus DIN EN 61439-2/3 standards. Benefit: Regulatory confidence and risk reduction for global deployments. Application: Suitable for automotive, process, and factory automation sectors. Feature: Compact dimensions (250 mm W x 450 mm H x 200 mm D) and 1.45 kg weight. Benefit: Lightweight, easy to handle, and compatible with standard rack and cabinet footprints. Application: Retrofit projects and new builds with tight space constraints.
