ABB 2CPX041758R9999 Power Management & Distribution - DIN EN 61439-2
Part Number: 2CPX041758R9999
Quick Summary
ABB 2CPX041758R9999 is an interior fitting module for N/PE busbars in modular distribution panels. Engineers often face limited space, mounting flexibility issues, and busbar misalignment during panel expansion. It complies with DIN EN 61439-2 and CE, RoHS declarations, and REACH compliance. The combination of these standards supports safe, reliable operation in industrial cabinets. For system integrators, this CombiLine interior fitting module offers a robust N/PE busbar solution with 24 DIN slots and stepless mounting, enabling faster assembly, better space utilization, and scalable configurations. Designed to align with maximum 2 copper busbars (sold separately) and ZX149 holders. With its protective plastic cover in RAL 7035, it resists routine maintenance challenges in harsh industrial environments.
Product Information
Extended Description

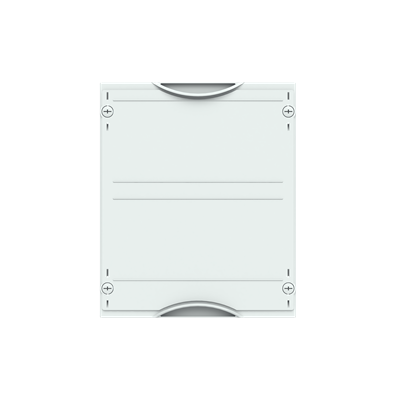

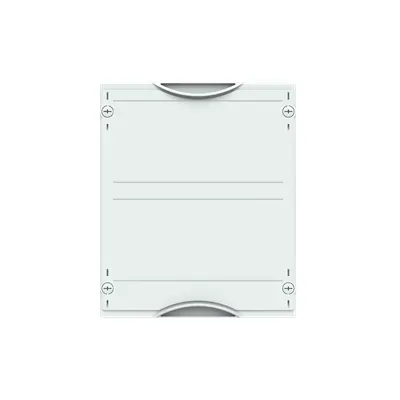

2CPX041758R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, Stepless adjustable via mounting bracket, usuable depth of 90 mm up to 145 mm, usuable width of 188 mm, for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX149, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
630 A
Rated Service Short-Circuit Breaking Capacity (Ics)
20 kA
Busbar Position
Center Central
Number of Poles
2P
Number of Rows
1
Enclosure Mounting Frame
WR
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Mounting Type
Stepless adjustable via mounting bracket
Accessories Available
Yes
DIN Place Units
24
Meter Boards
0
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
580484b3-c9a7-4125-bffd-a775cf66ed07 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
260 mm
Section Width
1
Product Net Weight
1.51 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.51 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBN162-362
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: 24 DIN place units housed in a compact interior fitting module for a 2-pole N/PE busbar system. Business impact: enables high-density terminal layouts, maximizing cabinet space while keeping wiring accessible for testing and maintenance; Application: ideal for CombiLine distribution panels in industrial control cabinets. Feature: Stepless mounting bracket provides continuous depth adjustment from 90 to 145 mm, with a built-in depth of 275 mm. Business impact: speeds field alignment and minimizes rework, enabling flexible installation across varied enclosure depths; Application: streamlines installation in modular cabinets with diverse depth constraints. Feature: Horizontal busbar alignment with ZX149 busbar holders. Business impact: ensures precise conductor spacing, robust connections, and reduced commissioning time; Application: suitable for 2 copper busbars ordered separately in space-limited panels. Feature: Plastic cover and light grey finish (RAL 7035) for durable, maintenance-friendly enclosures. Business impact: protects interior components from dust and impact while maintaining standardized cabinet aesthetics; Application: ideal for harsh industrial environments where visibility and access are critical. Feature: Comprehensive compliance package including DIN EN 61439-2, CE, RoHS, and REACH declarations. Business impact: simplifies procurement, regulatory audits, and reduces risk across global projects; Application: supports panel builders seeking certified components for multinational installations. Feature: Electrical ratings of 400 V maximum, 630 A nominal current, and 20 kA Ics. Business impact: supports high-power distribution while maintaining robust fault protection, reducing downtime in critical processes; Application: suitable for 2-pole busbar distributions in medium to large industrial cabinets. Feature: Busbar capacity for up to two copper busbars with ZX149 holders and 24 DIN spaces in a single module. Business impact: offers flexible expansion, scalable configurations, and straightforward upgrade paths; Application: use with copper busbars ordered separately for tailored installations.
