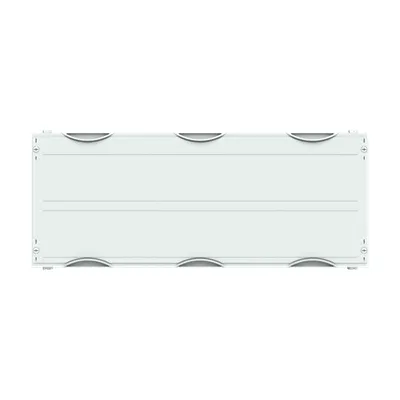

ABB 2CPX041762R9999 Interior fitting module - DIN EN 61439-2

Feature → Business Impact → Application: The interior fitting module supports a N/PE busbar and terminals configuration with a 2-pole, center-central busbar position, enabling clean, centralized wiring and reduced impedance paths in high-current panels. This translates to improved reliability and thermal performance in industrial distribution cabinets. Application: Modular power distribution in switchgear, CombiLine systems, and 2-Cu busbar installations where space is at a premium. Feature → Business Impact → Application: Stepless adjustable mounting bracket allows precise depth and width positioning (275 mm built-in depth, 90–145 mm usable depth) for rapid alignment during panel assembly. This reduces commissioning time and minimizes field modifications. Application: Customized enclosure fits in WR-mounted frames with tight tolerances. Feature → Business Impact → Application: 72 DIN place units and 750 mm width with 300 mm height offer scalable panel density, enabling future expansion without rework. Application: Large control panels and distribution boards requiring modular expansion. Feature → Business Impact → Application: Rated 400 V, 630 A and 20 kA short-circuit capacity provide robust performance for demanding networks, while horizontal busbar alignment supports straightforward fault analysis and serviceability. Application: Industrial plants with high-current feeders. Feature → Business Impact → Application: RoHS and REACH declarations plus CE conformity ensure regulatory readiness and lower compliance risk. Application: Global deployments across manufacturing sites. Note: Busbars up to two copper bars are supported, but must be ordered separately, offering flexibility to tailor conductor choices to site needs.
