ABB 2CPX041766R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX041766R9999
Quick Summary
ABB 2CPX041766R9999 interior fitting module is a modular distribution unit that accommodates N/PE busbars and terminals within CombiLine panels. This design addresses space constraints and misalignment during panel builds by offering stepless mounting and a centered busbar position. The product is CE marked and DIN EN 61439-3 compliant, with RoHS and REACH declarations ensuring regulatory alignment. With 400 V operation, 630 A capacity, and 72 DIN slots in a compact 500 x 450 x 260 mm footprint, it scales with evolving automation needs, reducing installation time and improving safety for N/PE distribution.
Product Information
Extended Description

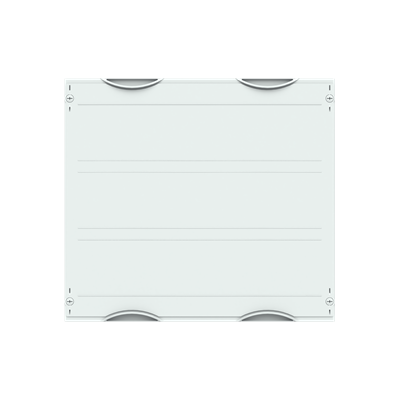

2CPX041766R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for N/PE busbar and terminals, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, Stepless adjustable via mounting bracket, usuable depth of 90 mm up to 145 mm, usuable width of 438 mm, for busbar system 2-pole, Busbar alignment: horizontal, with busbar holders ZX149, for maximum 2 Cu busbars, (busbars must be ordered separately), rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
630 A
Rated Service Short-Circuit Breaking Capacity (Ics)
20 kA
Busbar Position
Center Central
Number of Poles
2P
Number of Rows
2
Enclosure Mounting Frame
WR
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
Mounting Type
Stepless adjustable via mounting bracket
Accessories Available
Yes
DIN Place Units
72
Meter Boards
0
Module Function
N/PE busbar and terminals
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
580484b3-c9a7-4125-bffd-a775cf66ed07 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
260 mm
Section Width
2
Product Net Weight
3.27 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.27 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBN163-363
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001896 - Distributor assembly busbars
ETIM 9
EC001896 - Distributor assembly busbars
eClass
V11.0 : 27400610
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: N/PE busbar and terminals supporting a 2-pole busbar system with center-central alignment. Impact: Centralized distribution reduces wiring errors and simplifies maintenance, delivering measurable reliability gains. Application: Perfect for CombiLine interior fittings in modular distribution panels where precise busbar control is required. Feature: Stepless mounting via the provided mounting bracket and WR enclosure frame. Impact: Enables precise, fast alignment during installation, cutting commissioning time and allowing on-site adjustments without rework. Application: Widely used in high-density panel builds where flexibility and adjustability matter. Feature: 72 DIN place units and 500x450x260 mm footprint with 275 mm built-in depth. Impact: Supports organized and scalable busbar layout, enabling planners to fit 72 positions in compact spaces while preserving access for wiring and testing. Application: Suitable for mid- to large-scale automation cabinets needing 2P distribution and clear DIN-slot planning. Feature: Rated 400 V, 630 A, Ics 20 kA, and N/PE busbar support. Impact: Provides robust electrical performance with fault-current withstand and safe operation under peak loads. Application: Core component in industrial panels for power management and distribution. Feature: RoHS and REACH compliance, CE declaration, and DIN EN 61439-3/2 standards; 72 slots allow modular expansion. Impact: Streamlines compliance and procurement while enabling staged upgrades without rework. Application: Suited to regulated industries such as manufacturing and process automation.
