ABB 2CPX041770R9999 NH00-fuse switch disconnector-EN61439
Part Number: 2CPX041770R9999
Quick Summary
ABB 2CPX041770R9999 NH00-fuse switch disconnector is a modular solution for CombiLine interior fittings in 3-pole distribution panels. It addresses space constraints and retrofit challenges by delivering a compact 250 mm width, 300 mm height, and 200 mm depth in a 24‑DIN configuration. This device supports two NH00 fuse switches up to 320 A at 400 V, with a WR/EDF mounting frame for secure installation. Certified for DIN EN 61439-3 and EN 61439-2, and aligned with RoHS and REACH requirements, it helps teams maintain compliance while reducing panel footprint. By choosing ABB, engineers gain predictable performance, simplified procurement, and reduced total cost of ownership through standardized modular components.
Product Information
Extended Description

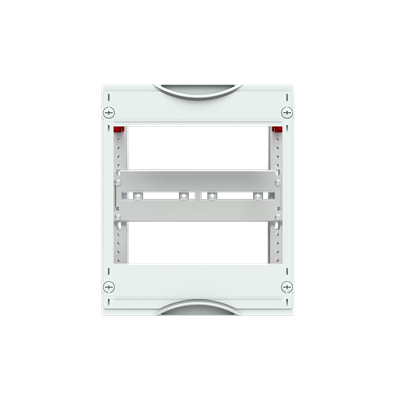

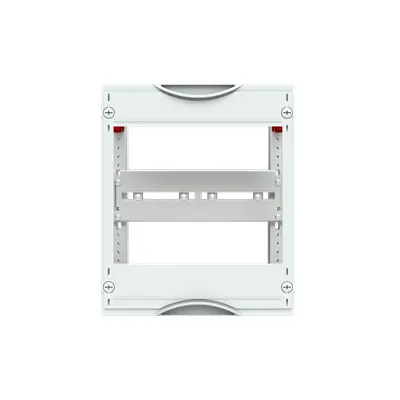

2CPX041770R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for NH00-fuse switch disconnector, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, unequipped for the installation of 2 NH-fuse disconnector NH00, for busbar system 3-pole, rated current maximum 320 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
320 A
Number of Poles
3P
Number of Fuse Switch Disconnectors
2
Number of Knife Blade Fuse Holders
0
Number of Mountable Devices
2
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
NH00
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Mounting Type
Mounting plate
Accessories Available
Yes
DIN Place Units
24
Meter Boards
0
Module Function
NH00-fuse switch disconnector
Color
Light grey
Fuse Size
NH00
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
0.99 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.99 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBTx36-x37
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
