ABB 2CPX041772R9999 NH00-fuse switch disconnector - 61439-2
Part Number: 2CPX041772R9999
Quick Summary
ABB 2CPX041772R9999 NH00-fuse switch disconnector offers safe, modular distribution for low-voltage control cabinets. Engineers face space constraints and tight project timelines; this design minimizes footprint and speeds installation. It complies with DIN EN 61439-2/3, CE declarations, RoHS and REACH, streamlining approvals and reducing risk. With 72 DIN places and 6 NH00 fuse-switch disconnectors, it supports scalable panel designs and faster upgrades, delivering reliable protection for control cabinets. The enclosure features a light grey finish and a mounting plate option compatible with WR or EDF frames. Designed for interior fitting modules, it aligns with 750 mm wide panels and 300 mm high footprints, enabling standardized layouts. Reliable, RoHS and REACH compliant, with CMRT documentation to ease supplier audits and product stewardship.
Product Information
Extended Description

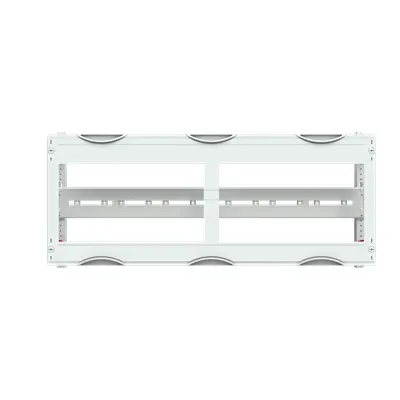

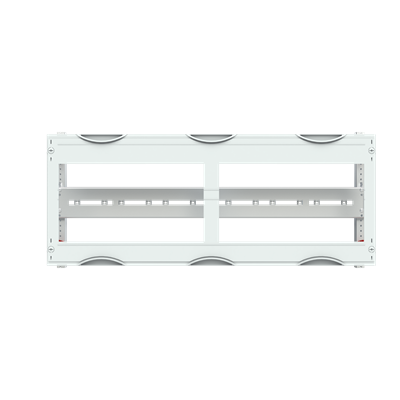

2CPX041772R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for NH00-fuse switch disconnector, Grid unit 2 GU = 300 mm, panel width 3 = 750 mm, 72 Space units, unequipped for the installation of 6 NH-fuse disconnector NH00, for busbar system 3-pole, rated current maximum 320 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
320 A
Number of Poles
3P
Number of Fuse Switch Disconnectors
6
Number of Knife Blade Fuse Holders
0
Number of Mountable Devices
6
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
NH00
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Mounting Type
Mounting plate
Accessories Available
Yes
DIN Place Units
72
Meter Boards
0
Module Function
NH00-fuse switch disconnector
Color
Light grey
Fuse Size
NH00
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
750 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
3
Product Net Weight
2.45 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
2.45 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBTx36-x37
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC002286 - Distributor assembly Low Voltage HRC fuse systems
ETIM 9
EC002286 - Distributor assembly Low Voltage HRC fuse systems
eClass
V11.0 : 27400619
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: NH00 fuse switch disconnector assembly supports a 3P configuration with six disconnectors inside a 72-place interior fitting module. Business Impact: enables a compact, scalable distribution footprint, reduces wiring complexity, and shortens cabinet assembly time. Application: ideal for CombiLine modular distribution panels in machine tools and process automation where space is at a premium. Feature: Enclosure dimensions designed for 750 mm width, 300 mm height, and 200 mm depth with built-in depth 200 mm. Business Impact: predictable installation across cabinet families, lowering field rework and total cost of ownership. Application: straightforward integration into existing WR or EDF frames. Feature: Regulatory compliance package including DIN EN 61439-2/3, CE declarations, RoHS, REACH, and CMRT. Business Impact: accelerates approvals, reduces compliance risk, and supports audits; Application: suitable for European and global manufacturing environments. Feature: Electrical performance rated at 400 V and 320 A with 3 poles. Business Impact: supports high-demand control circuits and ensures protection for critical loads; Application: ideal for industrial drives and panel boards. Feature: Interior fitting module with light grey plastic enclosure and 90-degree closure. Business Impact: improves operator safety, aesthetics, and maintenance access; Application: aligns with standard cabinet aesthetics and serviceability. Feature: 72 DIN placement, 6 mountable devices, and NH00 fuse size. Business Impact: enables scalable configurations and faster deployment; Application: suitable for modular distribution panels in assembly and process lines.
