ABB 2CPX041792R9999 Busbar System 40 mm - DIN EN 61439-3
Part Number: 2CPX041792R9999
Quick Summary
The ABB 2CPX041792R9999 Busbar System 40 mm enables modular interior fitting for S700 distribution panels. It addresses space constraints, wiring complexity, and compliance risk in panel builds. It complies with DIN EN 61439-2/3, RoHS, and REACH, ensuring safe, factory-assembled distribution. Designed for 250 A capacity, 4-pole setups, it speeds installation and reduces field wiring time, lowering total cost of ownership. The interior fitting module offers horizontal busbar alignment with a 40 mm center distance and 24 DIN places for high-density layouts. Covers are light grey plastic with a 90-degree closure, compatible with WR or EDF mounting frames and expandable with approved accessories. This combination supports scalable retrofits and predictable maintenance in power distribution projects.
Product Information
Extended Description

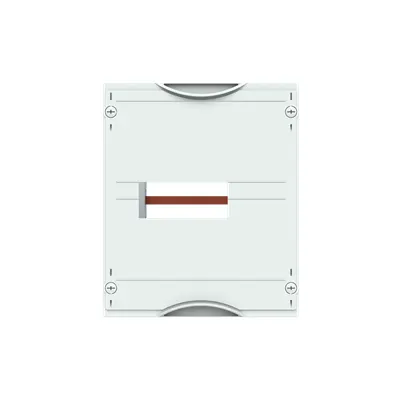

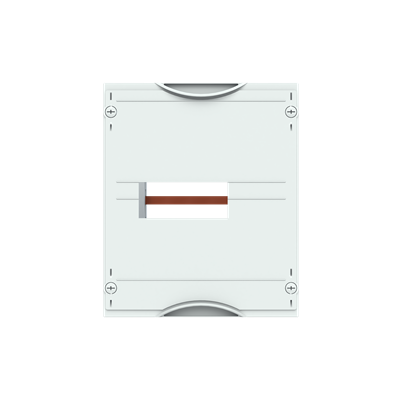

2CPX041792R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Busbar system 40 mm for S700, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, , usuable width of 105 mm, unequipped for the installation of selective main circuit breaker S700, for busbar system 4-pole, Busbar alignment: horizontal, with busbar holders ZB5, Busbar center distance: 40 mm, for maximum 4 Cu busbars, (busbars must be ordered separately), rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
250 A
Rated Operational Current (Ie)
250 A
Number of Poles
4P
Number of Switches
0
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
S700
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
Accessories Available
Yes
DIN Place Units
24
Meter Boards
0
Module Function
Busbar system 40 mm for S700
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
SCIP
f0ed06b2-fdb6-45ee-9524-7f9d73012c22 Germany (DE)
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
1.13 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.13 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBH150-351
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: The 40 mm busbar spacing and 24 DIN places enable high-density, scalable layouts, increasing panel capacity without expanding footprint, reducing material waste and enabling faster design iterations for S700 systems. This translates to improved space utilization and shorter time-to-production. Application: Ideal for compact control panels in process and machine automation where space is at a premium and future expansion is anticipated. Feature → Business Impact → Application: The interior fitting module is designed as an unassembled enclosure module, offering customization with selective main circuit breakers. Impact: reduces wasted inventory and enables tailored configurations for exact protection schemes. Application: Widely suitable for OEM panel builders assembling custom S700 distribution panels. Feature → Business Impact → Application: RoHS and REACH compliance with EU declarations provide regulatory risk mitigation and easier supplier audits. Impact: lowers compliance overhead and accelerates customer approvals. Application: European manufacturing environments prioritizing environmental and safety standards. Feature → Business Impact → Application: 250 A rated current with 4P design supports reliable, multi-pole distribution under 400 V. Impact: enhances fault tolerance and minimizes voltage drop across compact busbar assemblies. Application: Industrial power distribution in motor drives and process lines requiring robust busbar infrastructure. Feature → Business Impact → Application: 40 mm busbar center distance and busbar holders (orderable separately) enable flexible topology changes and quick reconfiguration. Impact: reduces downtime during modernization projects. Application: Retrofit projects in existing ABB or competitor enclosures seeking scalable upgrades. Feature → Business Impact → Application: WR or EDF mounting frame compatibility simplifies integration with existing cabinets. Impact: lowers cabinet modification work and ensures mechanical compatibility. Application: New installs and retrofits in ABB System landscapes where frame compatibility matters.
