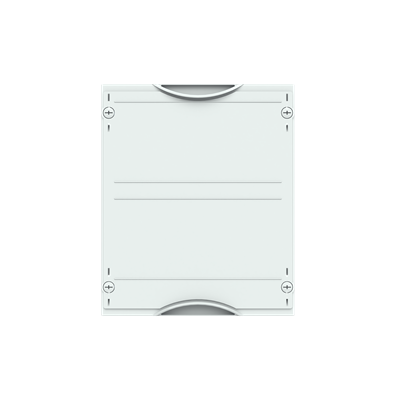

ABB 2CPX041803R9999 Switch Disconnector - 4P 160A
Part Number: 2CPX041803R9999
Quick Summary
ABB 2CPX041803R9999 switch disconnector interior fitting module isolates circuits in 4P panels. Engineers often struggle with space constraints, unassembled enclosures, and the complexity of safe isolation. This unit satisfies DIN EN 61439-3 and DIN EN 61439-2 requirements and carries a CE declaration, with RoHS and REACH compliance. With modular mounting, simple 90-degree closure, and this module's compact 250x300x200 mm footprint, panel builders gain faster installation and reliable protection across industrial automation applications. Designed for CombiLine systems and compatible with WR or EDF frames, it supports scalable, cost-efficient panel fabrication. Its 24 DIN places and 160 A rating ensure future-ready expansion without redesign.
Product Information
Extended Description

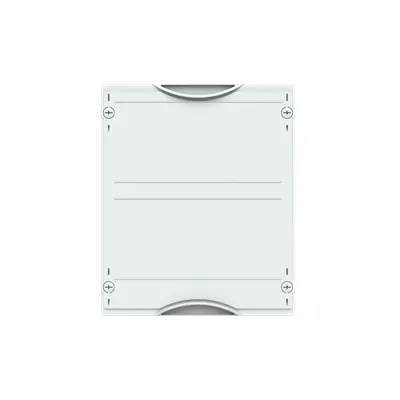

2CPX041803R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Switch disconnector OT not connected, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, , usuable width of 216 mm, unequipped for the installation of 1 NH-switch disconnector OT160G, for busbar system 4-pole, rated current maximum 160 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
160 A
Rated Operational Current (Ie)
160 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
OT160G
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Meter Boards
0
Module Function
Switch disconnector OT not connected
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
200 mm
Section Width
1
Product Net Weight
0.69 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
0.69 kg
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA160ALA
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Compact footprint and modular design reduce cabinet depth and free space for wiring and components, enabling faster panel builds and easier service access. This 4-pole switch disconnector supports a maximum 400 V operation and 160 A rated current, delivering reliable protection for high-power circuits while maintaining safe isolation during maintenance. The interior fitting module is prepared for integration within CombiLine modular distribution panels and is compatible with WR or EDF enclosure mounting frames, simplifying installation and future upgrades in evolving automation projects. With a 24 DIN place capacity and room for one NH-switch disconnector OT160G, it offers scalable configurations for growing control architectures, minimizing rework and downtime. The unit is RoHS and REACH compliant and ships with a CE declaration, ensuring regulatory readiness and market access for global projects. Lightweight at 0.69 kg and featuring a closed 90-degree closure, it reduces handling effort and improves enclosure aesthetics while meeting DIN EN 61439-2/3 requirements and ETIM/eClass classifications commonly used by panel builders and distributors.
Get a Quick Quote for a ABB 2CPX041803R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041803R9999?
Enquire Now
FAQs
The module is designed as an interior fitting module for CombiLine modular distribution panels, with a 4P configuration, 24 DIN places, and mounting compatibility with WR or EDF enclosure frames, enabling seamless integration into existing CombiLine installations.
It is rated for up to 400 V operational voltage and 160 A rated current (I n and I e), with 4 poles, making it suitable for high-power distribution sections while delivering safe isolation during maintenance.
The extended data indicates the enclosure is unequipped for installation of 1 NH-switch disconnector OT160G, so you would need a compatible alternative or a different enclosure option to accommodate that device.
The unit aligns with DIN EN 61439-3 and DIN EN 61439-2, carries a CE Declaration of Conformity, and complies with RoHS (Directive 2011/65/EU plus 2015/863) and REACH requirements, ensuring regulatory readiness.
Its interior fitting design, 90-degree closure, and WR/EDF mounting compatibility simplify installation, enable modular expansion, and support efficient maintenance in compact switchgear cabinets without extensive rework.
