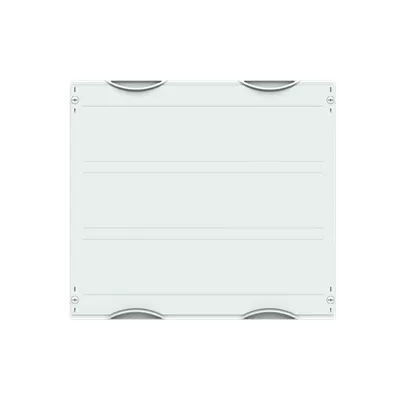

ABB 2CPX041805R9999 Switch disconnector interior fitting module - DIN EN 61439-3
Part Number: 2CPX041805R9999
Quick Summary
ABB 2CPX041805R9999 switch disconnector interior fitting module enables safe, modular distribution in industrial control cabinets. Engineers often face costly rework when panels are not preconfigured for mountable devices and space planning. It complies with CE conformity and DIN EN 61439-3/2, with RoHS and REACH declarations to minimize compliance risk. Designed to streamline enclosure integration and panel-building workflows, it supports efficient installation and scalable control architectures, helping teams reduce installation time and total cost of ownership while improving system reliability and safety.
Product Information
Extended Description
2CPX041805R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Switch disconnector OT not connected, Grid unit 3 GU = 450 mm, panel width 2 = 500 mm, 72 Space units, unequipped for the installation of 1 NH-switch disconnector OT630E, for busbar system 4-pole, rated current maximum 630 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
630 A
Rated Operational Current (Ie)
630 A
Number of Poles
4P
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR
Device
OT630E
Enclosure Type
Interior fitting module
Enclosure Type of Height
00
DIN Place Units
72
Meter Boards
0
Module Function
Switch disconnector OT not connected
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
450 mm
Product Net Depth / Length
260 mm
Section Width
2
Product Net Weight
3.37 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.37 kg
E-Number (Norway)
2444455
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA250ALA-630ALA
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature → Business Impact → Application: The module is designed with a WR mounting frame and a 72 DIN place layout, enabling straightforward integration into existing CombiLine interiors, which reduces cabinet rework and accelerates project timelines in panel-building environments. This translates to measurable efficiency gains during assembly and commissioning in industrial plants. Feature → Business Impact → Application: Rated for 400 V and 630 A across 4P configurations, the unit provides robust switch-disconnector capabilities for high-current feeder modules, improving protection reliability in critical power paths and enabling safer, faster fault isolation in control cabinets. Feature → Business Impact → Application: The interior fitting module is unequipped for devices, allowing designers to tailor the enclosure with chosen components while maintaining standardization across multiple lineups, which lowers stocking complexity and enables scalable configurations for multi-network architectures. Feature → Business Impact → Application: The 275 mm built-in depth and 500 mm width align with common panel dimensions, reducing enclosure clearance issues and simplifying logistics for OEMs and system integrators working with 4-pole busbar systems. Feature → Business Impact → Application: Compliance with DIN EN 61439-3/2, RoHS, and REACH declarations minimizes regulatory risk and supports ISO and industry audit readiness, while the CE declaration reinforces customer confidence in safety and performance. Feature → Business Impact → Application: The 90-degree closure mechanism and light grey polycarbonate covers provide durable enclosure integrity in demanding environments, improving long-term maintenance visibility and reducing ancillary protection costs during service windows. Feature → Business Impact → Application: Available mounting instructions MBA250ALA-630ALA and documented data sheets streamline installer training and onboarding, helping manufacturers meet tight project schedules and accelerate time-to-value for new panel configurations.
Get a Quick Quote for a ABB 2CPX041805R9999
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 2CPX041805R9999?
Enquire Now
FAQs
The module is designed as an interior fitting unit for CombiLine systems and uses the WR mounting frame, accommodating 72 DIN place units and a 500x450 mm footprint. It is unequipped for devices, allowing you to tailor the interior with your preferred components while maintaining standard enclosure interfaces and ensuring straightforward installation within modular distribution panels.
Key specs include a rated operational voltage of 400 V, a rated current (In) of 630 A, and a 4P configuration with 0 switches installed. It supports a busbar system for a four-pole arrangement and is designed for interior installation of a switch disconnector OT630E, making it suitable for high-current feeder applications in control cabinets.
Yes. The module carries a CE Declaration of Conformity for the Distribution Panel System CombiLine N and adheres to RoHS directives (EU 2011/65/EU and 2015/863) with an RoHS date of 20240903, and it provides a REACH declaration indicating no substances above 0.1 mass percentage. These certifications support regulatory compliance in European markets and audit readiness.
Installation guidance includes the mounting instruction MBA250ALA-630ALA, along with datasheets and catalog references such as ‘Catalogue for panel builders 2024/2025’ and ‘Catalogue for wholesalers 2025.’ These resources help installers correctly integrate the interior fitting module into the CombiLine system and ensure proper alignment with the WR mounting frame.
Adopting this module reduces rework by enabling preconfigured interior fitting in a standardized CombiLine system, shortens installation time, and supports scalable, 4-pole protection architectures. It also streamlines procurement with a consistent enclosure footprint (500x450 mm) and reliable compliance, delivering lower total cost of ownership and faster time-to-value for OEMs and systems integrators.
