ABB 2CPX041806R9999 Universal switch - DIN EN 61439-2
Part Number: 2CPX041806R9999
Quick Summary
Universal switch units from ABB simplify modular distribution in industrial panels and control cabinets. Engineers often struggle with space planning and device mounting in large switchgear; this interior fitting module provides a compact 96-DIN grid (4U) ready for a single OT800E installation. The design conforms to CE and DIN EN 61439-2/61439-3 standards, with RoHS and REACH declarations ensuring regulatory compliance for global manufacturing. By standardizing enclosure fit, it reduces assembly time and field rework, while enabling scalable expansion in CombiLine systems and WR-frame cabinets. For panel builders and integrators, the result is predictable installation times, lower risk of misfit, and improved maintenance planning in modular electrical distribution.
Product Information
Extended Description

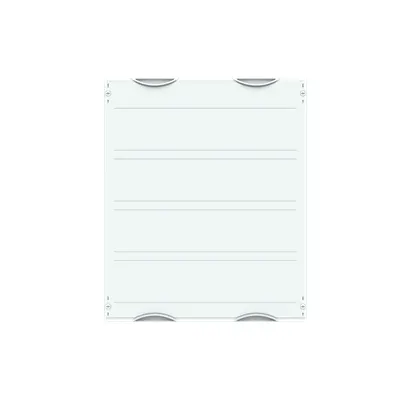

2CPX041806R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Universal switch unequipped, Grid unit 4 GU = 600 mm, panel width 2 = 500 mm, 96 Space units, , usuable width of 420 mm, unequipped for the installation of 1 Universal switch OT800E, for busbar system -pole, rated current maximum 800 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 275 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
800 A
Rated Operational Current (Ie)
800 A
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR
Device
OT800E
Enclosure Type
Interior fitting module
Enclosure Type of Height
0
DIN Place Units
96
Meter Boards
0
Module Function
Universal switch unequipped
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
500 mm
Product Net Height
600 mm
Product Net Depth / Length
275 mm
Section Width
2
Product Net Weight
3.55 kg
Built-In Depth (t2)
275 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
3.55 kg
E-Number (Norway)
2407825
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA250A-800A
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
Feature: Interior fitting module format for CombiLine panels with 96 DIN places and 600 mm x 500 mm footprint. Business Impact: Enables compact, orderly mounting for a single high-current device, reducing cabinet depth and facilitating quicker assembly. Application: Ideal for panel builders integrating an OT800E in 4GU grid configurations. Feature: Enclosure mounting frame WR compatibility. Business Impact: Ensures secure, repeatable installation within ABB and third-party cabinets, lowering field retrofit needs. Application: Works with existing WR frames to streamline installation in modular switchgear. Feature: Device accommodation for OT800E; unequipped for other devices. Business Impact: Simplifies procurement and testing by delivering a ready-to-host slot with clear upgrade path. Application: Great for controlled commissioning in CombiLine distributions. Feature: Compliance and declarations (CE, RoHS, REACH). Business Impact: Reduces regulatory risk and accelerates customer acceptance. Application: Suitable for global production with strong traceability. Feature: Clear dimensions and weight (500 mm W x 600 mm H x 275 mm D; 3.55 kg). Business Impact: Predictable handling, shipping, and on-site maneuvering. Application: Fits standard modular enclosures and supports straightforward maintenance.
