ABB 2CPX041807R9999 Interior fitting module - DIN EN 61439-3
Part Number: 2CPX041807R9999
Quick Summary
ABB 2CPX041807R9999 interior fitting module integrates with CombiLine modular distribution panels for Universal switch unequipped configurations. This solution addresses the common challenge of space constraints and wiring complexity when expanding or upgrading panel installations. It adheres to critical standards such as DIN EN 61439-3, CE conformity, and RoHS/REACH declarations, providing regulatory confidence for panel builders and installers. Designed for a 24 DIN place footprint and up to 250 A, it delivers scalable capacity while maintaining a compact, accessible layout. For procurement and maintenance teams, the module translates to faster assembly, safer operation, and reduced total cost of ownership by enabling modular growth and straightforward upgrades.
Product Information
Extended Description

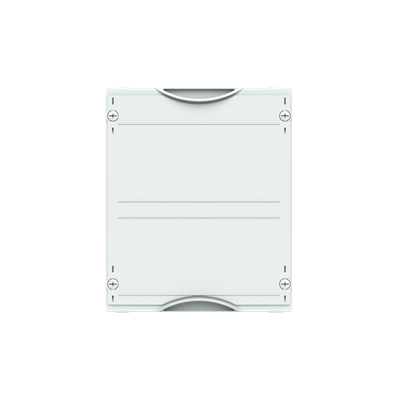

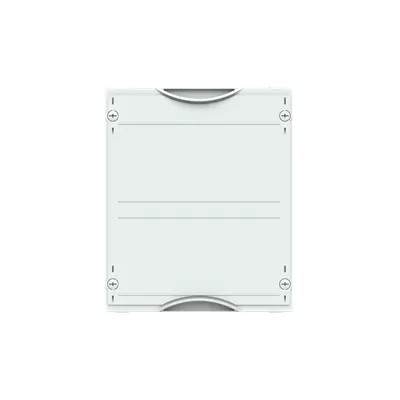

2CPX041807R9999 ABB: Interior fitting module, CombiLine, Modular distribution panel not assembled, for Universal switch unequipped, Grid unit 2 GU = 300 mm, panel width 1 = 250 mm, 24 Space units, , usuable width of 170 mm, unequipped for the installation of 1 Universal switch OT250E, for busbar system -pole, rated current maximum 250 A, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usuable as of the cabinet depth of 200 mm
Rated Operational Voltage
Maximum 400 V
Operational Voltage
400 V
Rated Current (In)
250 A
Rated Operational Current (Ie)
250 A
Number of Switches
0
Number of Mountable Devices
1
Enclosure Module Equipment
Excludes Devices
Enclosure Mounting Frame
WR or EDF
Device
OT250E
Enclosure Type
Interior fitting module
Enclosure Type of Height
000
DIN Place Units
24
Meter Boards
0
Module Function
Universal switch unequipped
Color
Light grey
RoHS Information
EU Declaration of Conformity Distribution Panel System CombiLine N
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date
20240903
REACH Declaration
Declaration regarding the REACH – Regulation ABB STRIEBEL & JOHN
REACH Information
False - does not contain substances > 0.1 mass percentage
REACH Date
20240902
Conflict Minerals Reporting Template (CMRT)
Conflict Minerals Reporting Template
WEEE Category
Product Not in WEEE Scope
Product Net Width
250 mm
Product Net Height
300 mm
Product Net Depth / Length
120 mm
Section Width
1
Product Net Weight
1.07 kg
Built-In Depth (t2)
200 mm
Package Level 1 Units
pack 1 piece
Package Level 1 Gross Weight
1.07 kg
E-Number (Norway)
2444459
Declaration of Conformity - CE
EU Declaration of Conformity Distribution Panel System CombiLine N
Instructions and Manuals
Mounting instruction MBA250A-800A
Data Sheet, Technical Information
Catalogue for panel builders 2024/2025 Intro | Catalogue for wholesalers 2025 Intro
ETIM 8
EC001897 - Distributor assembly switch
ETIM 9
EC001897 - Distributor assembly switch
eClass
V11.0 : 27400611
Object Classification Code
U
Standards
DIN EN 61439-3 | DIN EN 61439-2
